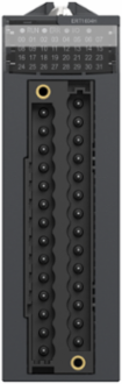

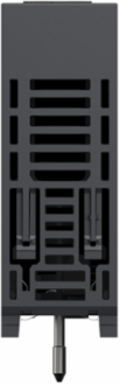

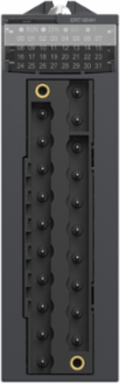

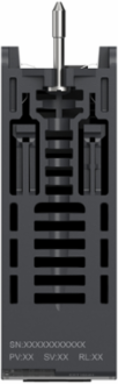

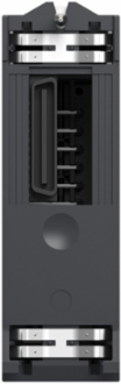

Schneider Electric BMXERT1604H Modicon X80 Multifunction Input Module, 16 Inputs, 24/125 V
- MPN: BMXERT1604H
- PPN: SCH-BMXERT1604H
CAD
$1714.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The BMXERT1604H Modicon X80 Multifunction Input Module from Schneider Electric is an essential component for efficient automation systems, offering 16 versatile inputs that support both 24V and 125V configurations. Engineered with reliability in mind, this module enhances the functionality of your control panels, enabling seamless integration and precise data acquisition. Its multifunction capabilities make it a valuable asset for a variety of industrial applications, ensuring that your operations run smoothly and effectively. With this input module, you can expect enhanced performance and flexibility tailored to meet the demands of modern automated environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Depth86 mm
Complementary Attributes
- Maximum Power Consumption In W
- 4 W process input
Important Information Attributes
- Environmental Characteristic
- gas resistant class Gx ISA S71.04gas resistant class 3C4 IEC 60721-3-3dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3hazardous location class I division 2
- Local Signalling
- 1 LED (green) for firmware and module run (RUN), 1 LED (green) for status of time code input (T)1 LED (red) for module fault (ERR), 1 LED (red) for power supply interruption (I/O)16 LEDs for input status (0...15)
- Time Synchronisation Protocol
- DCF77, IRIG-B
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0223605818, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0455336727, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 59 kg CO2 eq., 59.0618094972
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Current Consumption
- 30 mA 24 V DC130 mA 3.3 V DC
- Function Available
- hot swap
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- conformal coating
- Returnability
- No
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 81 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
- Recyclability Potential In %
- 3
- Width Nominal
- 32 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Water Use (M3 Eq) Manufacturing [A1-a3]
- 60579.6
Isolation Voltage2500 V DC 60 s bus to discrete input1400 V DC 60 s bus to IRIG/DCF, 2500 V DC 60 s discrete input to IRIG/DCF
Switching Voltage125 V 1.3 mA process input, 110 V 1.3 mA process input60 V 2.5 mA process input, 48 V 2.5 mA process input24 V 6.7 mA process input
Certificate AgencyCE, UL, CSA, RCM, EAC, Merchant Navy
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.3034265455
Carbon Footprint Of The Manufacturing Phase [A1 To A3]22 kg CO2 eq., 21.8486181818
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2311046EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1946
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Anti Bounce Filteringconfigurable from 0 to 255 ms
Data Recording1 ms time stamps
Group Of Channels4 groups of 4 inputs process input
Product Or Component Typemultifunction input module
Range Of ProductModicon X80
Sampling Duration0.5 ms
Sustainable PackagingYes
Pep CodeENVPEP2311046EN
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Height Nominal100 mm
[Us] Rated Supply Voltage24 V DC 19...30 V)48...60 V DC 38...75 V)110...125 V DC 88...156 V)
Package Weight(Lbs)171.0 g
Warranty (In Months)18
Customs Code8538908180
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 81.281748479
- Environmental Disclosure
- ENVPEP2311046EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2311046EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Operating Altitude0...6561.68 ft (0...2000 m), 2000...5000 m
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2311046EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Relative Humidity95-95 % without condensation
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- multifunction input module
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC001422
ETIM 9EC001422
Surge Protection And Filtering Attributes
- Anti Bounce Filtering
- configurable from 0 to 255 ms
Accessories
