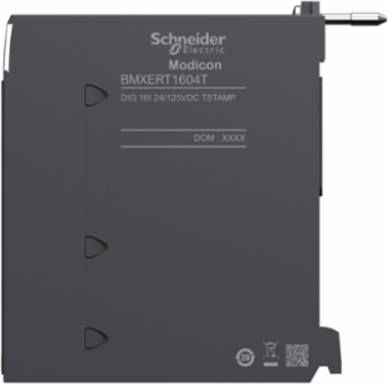

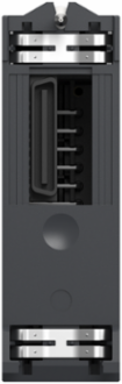

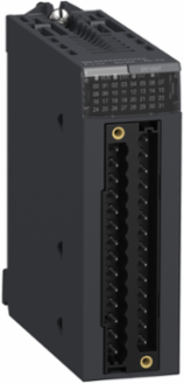

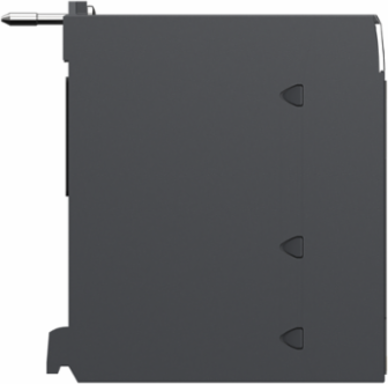

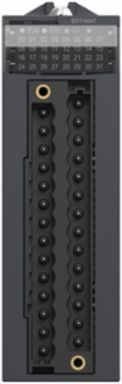

Schneider Electric BMXERT1604T Modicon X80 Multifunction Input Module, 16 Inputs, 24V DC
Schneider Electric BMXERT1604T Modicon X80 Multifunction Input Module, 16 Inputs, 24V DC
- MPN: BMXERT1604T
- PPN: SCH-BMXERT1604T
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1612.83/ EA
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This multifunction input module has 16 inputs with hot swap function. It has 4 groups of 4 input channels for process input with configurable from 0ms to 255ms anti bounce filtering. It is an module with a rated supply voltage of 24V DC, 48V DC to 60V DC, 110V DC to 125V DC and a current consumption of 30mA. This product is robust, high quality and based on the latest innovative technology. It has 4 groups of 4 input channels for process input with configurable from 0ms to 255ms anti bounce filtering. Its dimensions are 32mm (width) x 86mm (depth) x 100mm (height). It is suitable for medium to large process applications. This product is certified by Merchant Navy, C-Tick and GOST. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Specifications
Environment
- Product Certifications
- CE || RCM || CSA || EAC || Merchant Navy || UL
- Standards
- EN/IEC 61010-2-201 || EN/IEC 61131-2 || UL 61010-2-201 || CSA C22.2 No 61010-2-201
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
- Relative Humidity
- 95-95 % without condensation
Ambient Air Temperature For Operation-25-70 °C
Environmental Characteristicgas resistant class Gx || gas resistant class 3C4 || dust resistant class 3S4 || sand resistant class 3S4 || salt resistant level 2 || mold growth resistant class 3B2 || fungal spore resistant class 3B2
Ambient Air Temperature For Storage-40-85 °C
Operating Altitude<= 4000 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
Mercury FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Height
- 100 mm
- Group Of Channels
- 4 groups of 4 inputs process input
- Acquisition Time
- 1 ms
- Anti Bounce Filtering
- configurable from 0 to 255 ms
- Function Available
- hot swap
- Local Signalling
- firmware and module run (RUN) 1 LED green) || status of time code input (T) 1 LED green) || module fault (ERR) 1 LED red) || power supply interruption (I/O) 1 LED red) || input status (0...15) 16 LEDs
- Switching Voltage
- 125 V 1.3 mA process input || 110 V 1.3 mA process input || 60 V 2.5 mA process input || 48 V 2.5 mA process input || 24 V 6.7 mA process input
- Depth
- 86 mm
[Us] Rated Supply Voltage24 V DC 19...30 V) || 48...60 V DC 38...75 V) || 110...125 V DC 88...156 V)
Sampling Duration0.5 ms
Current Consumption30 mA 24 V DC || 130 mA 3.3 V DC
Isolation Voltage2500 V DC 60 s bus to discrete input || 1400 V DC 60 s bus to IRIG/DCF || 2500 V DC 60 s discrete input to IRIG/DCF
Time Synchronisation ProtocolDCF77 || IRIG-B
Data Recording1 ms time stamps
Width32 mm
Maximum Power Consumption In W4 W process input
Specifications
- Range Of Product
- Modicon X80
Product Or Component Typemultifunction input module
