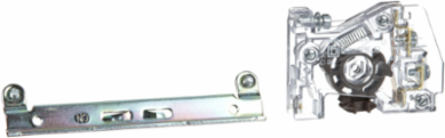

Square D 9999SX7 NEMA Motor Starter and contactor, Type S, auxiliary contact, 1 NC contact, external, field convertible

MPN: 9999SX7
UPC: 785901733508
PPN: SCH-9999SX7

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$172.63/ EA

Qty:

Loading add to cart quantity...

Description

Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This external convertible contact is mounted on the side of a contactor or starter. It is often used as part of the electrical control circuit. This auxiliary contact has one normally closed contact. Auxiliary contact module has a NEMA A600 contact rating with a maximum voltage rating of 600VAC. Inductive break rating of 6.0 A at 120 VAC. Contact modules are UL component recognized and CSA certified.

Specifications

Range Of Product: type S

Product Destination: contactor || starter

Product Or Component TypeAuxiliary Contact Module

Complementary

[Ue] Rated Operational Voltage: <= 600 V AC 50/60 Hz

Nema Size: 2 || 0 || 1 || 6 || 3 || 5 || 00 || 4 || 7

Auxiliary Contact Composition1 NC

Rated Breaking Capacity6 A 120 V AC inductive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508

Offer Sustainability

China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Eu Rohs DirectiveNot compliant

Environment

Product Certifications: CSA || UL recognized || UL listed

Downloads
