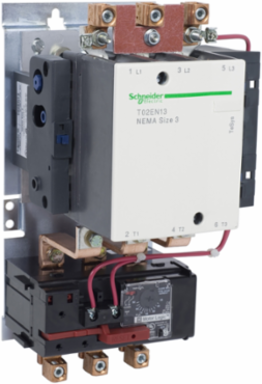

Square D T36EN13G7 TeSys N Motor Starter, 90A, 50hp, 3 Phase, NEMA Size 3, UL Listed
Square D T36EN13G7 TeSys N Motor Starter, 90A, 50hp, 3 Phase, NEMA Size 3, UL Listed
- MPN: T36EN13G7
- PPN: SCH-T36EN13G7
- UNSPSC: 39121521
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2604.89/ EA
Description
Engineered for reliability and efficiency, the TeSys N motor starter from Schneider Electric is designed to handle demanding applications with ease. Capable of managing up to 90A and suitable for 50hp motors at 575VAC, this non-reversing starter is ideal for three-phase systems. It features a solid-state thermal overload protection system, ensuring optimal performance while safeguarding your equipment. With its UL and CSA certifications, you can trust in its quality and compliance, making it a robust choice for industrial automation and control needs.
Features
- Flexible with four overload relays types
- Customizable with hundreds of combinations
- Streamline installation, wiring, maintenance and field modifications
- Reliable build for long mechanical life and electrical endurance
- Ideal for use in construction, industrial markets, building automation
Specifications
Conformance Attributes
- Product Certifications
- UL Listed, CSA
Complementary Attributes
- Rated Power In HP
- 25 HP 200 V AC, 30 HP 230 V AC, 50 HP 460 V AC, 50 HP 575 V AC
- Line Rated Current
- 90 A
Control Circuitcommon control circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Manufacturer
- Square D
- Scope Perimeter
- Outside of Europe
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Control Circuit
- common control circuit
- Energy Efficiency Optimized
- False
- Package Weight Lbs
- 6.849 kg
- Poles Description
- 3P
- Product Or Component Type
- starter
- Returnability
- Yes
- Thermal Overload Type
- solid state Motor Logic class 10/20 30-90 A
- Ue Rated Operational Voltage2
- 600 V AC
- Stocking Flag
- Y
- Global Commercial Status
- Commercialised
- Ue Rated Operational Voltage5
- 600 V AC
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Publishable Date2025-12-13
Legacy WEEE ScopeIn
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeNo
Without Single Use PlasticNo
Return IndicatorY
Function OptionStandard
Electrical Connectionlugs ordered separately
Motor Starter Typenon reversing
Phase3 phase
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductTeSys N
Sustainable PackagingNo
Uc Control Circuit Voltage2120 V AC
Medium DescMotor starter, TeSys N, nonreversing, Size 3, 90A, 3 pole, 50 HP at 575V, pre-assembled with Motor Logic SSOLR, 120VAC 60Hz coil
Product Kit IdentifierN
Uc Control Circuit Voltage5120 V AC
Environment Attributes Main
- China ROHS Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- ROHS Exemption Information
- Yes
- Reach Free SHVC
- Yes
- Mercury Free
- Yes
- Nema Size
- 3
- Packaging Without Single Use Plastic
- No
EU ROHS DirectiveCompliant By Exemption , Compliant with Exemptions
Take BackNo
Recycled Metal Content At Cr Level0 %
Nema Degree Of Protectionnot rated (open device)
Packaging Made With Recycled CardboardNo
Reach Free Of SVHCYes
General Attributes
- Phase
- 3 phase
- Range Of Product
- TeSys N
Product Or Component Typestarter
