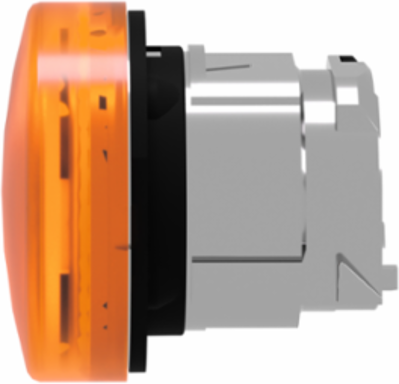

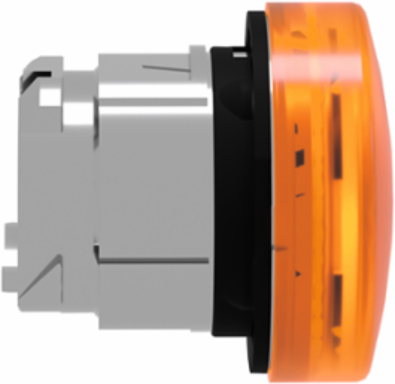

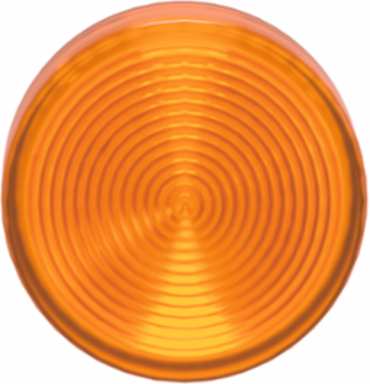

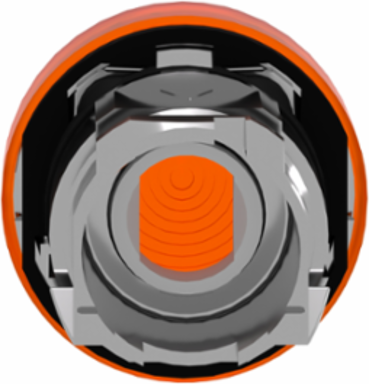

Schneider Electric ZB4BV053S Harmony XB4 22mm Orange Pilot Light Head, IP66, Grooved Lens
- MPN: ZB4BV053S
- PPN: SCH-ZB4BV053S
CAD
$6.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

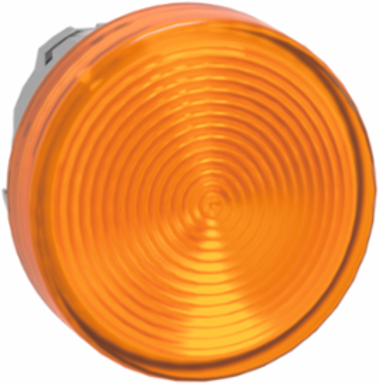

This Harmony XB4, grooved lens head for pilot light with integral LED is orange. This head for integral LED pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
- Operator Additional Information
- with grooved lens
- Mounting Diameter
- 22 mm
- Shape Of Signaling Unit Head
- round
- Head Type
- standard
- Environmental Characteristic
- high ambient lighting environment
- Product Compatibility
- universal LED
Range Of ProductHarmony XB4
Product Or Component Typehead for pilot light
Cap/Operator Or Lens Colourorange
Sale Per Indivisible Quantity1
Bezel Materialchromium plated metal
Device Short NameZB4
Complementary
- Electrical Composition Code
- P1 front mounting integral LED || P2 front mounting integral LED and transformer
- Cad Overall Height
- 29 mm
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Cad Overall Depth
- 30 mm
Net Weight0.026 kg
Device Presentationbasic element
Cad Overall Width29 mm
Environment
- Ik Degree Of Protection
- IK06 conforming to IEC 50102
- Standards
- IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-5-5 || IEC 60947-1 || IEC 60947-5-4 || UL 508 || JIS C8201-1
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
Ambient Air Temperature For Operation-40-70 °C
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 || IP69 || IP69K
Overvoltage Categoryclass I IEC 60536
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2308026EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI2308026EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Important Information
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
