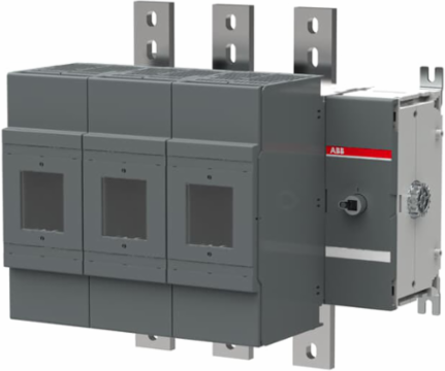

ABB OS1200L30 OS1200L30 SWITCH FUSE
- MPN: OS1200L30
- UPC: 804325510707
- PPN: ABB-OS1200L30
- UNSPSC: 39122233
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Switch Fuses,Front Operated,3-pole,30 (Right Side),Class L,1200 A,Handle and shaft not included,
Specifications
Dimensions
- Product Net Width
- 429 mm
- Product Net Depth / Length
- 294 mm
Product Net Height426 mm
Product Net Weight31.23 kg68.85 lb
Technical
- Rated Operational Current AC-21B (Ie)
- (500 V) 1250 A(690 V) 1250 A
- Rated Operational Current AC-22B (Ie)
- (500 V) 1250 A(690 V) 1250 A
- Rated Operational Current AC-23B (Ie)
- (500 V) 1000 A(690 V) 1000 A
- Conventional Free-air Thermal Current (Ith)
- Θ = 40 °C 1250 A
- Rated Impulse Withstand Voltage (Uimp)
- 12 kV
- Rated Operational Voltage
- Main Circuit 690 V AC
- Rated Conditional Short-Circuit Current (Inc)
- (690 V) 80 kA
- Pollution Degree
- 3
- Switches Operating Mechanism
- 30 (Right Side)
- Fuse Size
- 1200 A
- Operating Mode
- Front Operated
- Mounting Type
- Base mounting
- Cable Cross-Section
- 2.5 ... 25 mm²
- Terminal Width
- 50 mm
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 1250 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 1000 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 315 kW(400 V) 560 kW(415 V) 560 kW(500 V) 710 kW(690 V) 1000 kW
Conventional Thermal Current (Ithe)Fully Enclosed 1000 A
Rated Insulation Voltage (Ui)1000 V
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 40 kiloampere rms
Power Lossat Rated Operating Conditions per Pole 110 W
Handle TypeHandle and shaft not included
Position of Line TerminalsTop In - Bottom Out, Bottom In - Top Out
Fuse SystemClass L
StandardsUL98IEC 60947-3
Number of Poles3
Terminal TypeLug terminals
Rated Current (In)Main Circuit 1200 A
Classifications
- Object Classification Code
- Q
- IDEA Granular Category Code (IGCC)
- 5291 >> Fuse switch disconnector
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
ETIM 9EC001040 - Fuse switch disconnector
eClassV11.1 : 27371401
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- RoHS Information
- 1SCC011020D0201
REACH Declaration1SCC011021D0201
Technical UL/CSA
- Ampere Rating
- 1200 A
Tightening Torque UL/CSAWire-Clamp 500 in·lbCable Lug 480 in·lb
Ordering
- Minimum Order Quantity
- 1 piece
- Country of Origin
- Finland (FI)
Customs Tariff Number85365080
