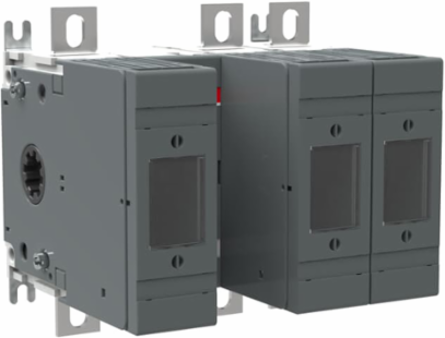

ABB OS125GD12 OS125GD12 SWITCH FUSE
- MPN: OS125GD12
- UPC: 888614078505
- PPN: ABB-OS125GD12
- UNSPSC: 39122233
CAD
$599.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Switch Fuses,Front Operated,3-pole,12 (Between the Poles),DIN,000,00,Handle and shaft not included,
Specifications
Dimensions
- Product Net Width
- 147 mm
- Product Net Depth / Length
- 130 mm
Product Net Height112 mm
Product Net Weight1.845 kg4.07 lb
Technical
- Rated Operational Current AC-21A (Ie)
- (500 V) 125 A(690 V) 125 A
- Rated Operational Current AC-23A (Ie)
- (500 V) 125 A(690 V) 125 A
- Conventional Free-air Thermal Current (Ith)
- Θ = 40 °C 125 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Operational Voltage
- Main Circuit 690 V AC
- Rated Conditional Short-Circuit Current (Inc)
- (690 V) 80 kA
- Pollution Degree
- 3
- Switches Operating Mechanism
- 12 (Between the Poles)
- Fuse Size
- NH000NH00
- Operating Mode
- Front Operated
- Mounting Type
- Base mounting
- Terminal Type
- Lug terminals
- Tightening Torque
- 15 ... 22 N·m
Rated Operational Current AC-22A (Ie)(500 V) 125 A(690 V) 125 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 37 kW(400 V) 55 kW(415 V) 55 kW(500 V) 75 kW(690 V) 110 kW
Conventional Thermal Current (Ithe)Fully Enclosed 125 A
Rated Insulation Voltage (Ui)1000 V
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 5 kiloampere rms
Power Lossat Rated Operating Conditions per Pole 12 W
Handle TypeHandle and shaft not included
Position of Line TerminalsTop In - Bottom Out, Bottom In - Top Out
Fuse SystemDIN
StandardsIEC 60947-3
Number of Poles3
Terminal Width20 mm
Rated Current (In)Main Circuit 125 A
Classifications
- Object Classification Code
- Q
- IDEA Granular Category Code (IGCC)
- 5291 >> Fuse switch disconnector
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
ETIM 9EC001040 - Fuse switch disconnector
eClassV11.1 : 27371401
E-Number (Finland)3660340
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- RoHS Information
- 1SCC011020D0201
REACH Declaration1SCC011021D0201
Technical UL/CSA
- Tightening Torque
- 15 ... 22 N·m
Ordering
- Minimum Order Quantity
- 1 piece
- Country of Origin
- Finland (FI)
Customs Tariff Number85365080
