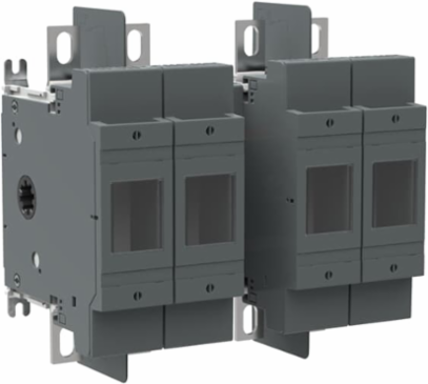

ABB OS200J22F OS200J22F FUSIBLE DISCONNECT SWITCH
- MPN: OS200J22F
- UPC: 804325440370
- PPN: ABB-OS200J22F
- UNSPSC: 39122233
CAD
$1806.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Switch Fuses,Front Operated,4-pole,22 (Between the Poles),Class J,200 A,Handle and shaft not included,Switched - Fusible Pole
Specifications
Dimensions
- Product Net Width
- 228 mm
- Product Net Depth / Length
- 132 mm
Product Net Height218 mm
Product Net Weight3.8 kg8.4 lb
Technical
- Rated Operational Current AC-21A (Ie)
- (500 V) 200 A(690 V) 200 A
- Rated Operational Current AC-23A (Ie)
- (380 ... 415 V) 200 A(500 V) 200 A(690 V) 200 A
- Conventional Free-air Thermal Current (Ith)
- Θ = 40 °C 200 A
- Rated Impulse Withstand Voltage (Uimp)
- 12 kV
- Rated Operational Voltage
- Main Circuit 690 V AC
- Rated Conditional Short-Circuit Current (Inc)
- (690 V) 80 kA
- Pollution Degree
- 3
- Fourth Pole Type
- Switched - Fusible Pole
- Position of Line Terminals
- Top In - Bottom Out, Bottom In - Top Out
- Fuse System
- Class J
- Standards
- UL98IEC 60947-3
- Number of Poles
- 4
- Terminal Width
- 20 mm
- Rated Current (In)
- Main Circuit 200 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 200 A(500 V) 200 A(690 V) 200 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 60 kW(400 V) 110 kW(415 V) 110 kW(500 V) 132 kW(690 V) 200 kW
Conventional Thermal Current (Ithe)Fully Enclosed 200 A
Rated Insulation Voltage (Ui)1000 V
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kiloampere rms
Power Lossat Rated Operating Conditions per Pole 17 W
Handle TypeHandle and shaft not included
Switches Operating Mechanism22 (Between the Poles)
Fuse Size200 A
Operating ModeFront Operated
Mounting TypeBase mounting
Terminal TypeLug terminals
Tightening Torque15 ... 22 N·m
Classifications
- Object Classification Code
- Q
- IDEA Granular Category Code (IGCC)
- 5291 >> Fuse switch disconnector
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
ETIM 9EC001040 - Fuse switch disconnector
eClassV11.1 : 27371401
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- RoHS Information
- 1SCC011020D0201
REACH Declaration1SCC011021D0201
Technical UL/CSA
- Ampere Rating
- 200 A
- Tightening Torque
- 15 ... 22 N·m
Horsepower Rating UL/CSA(acc. to UL 240 V) 60 Hp(acc. to UL 480 V) 125 Hp(acc. to UL 600 V) 150 Hp
Tightening Torque UL/CSAWire-Clamp 275 in·lbCable Lug 72 in·lb
Ordering
- Minimum Order Quantity
- 1 piece
- Country of Origin
- Finland (FI)
Customs Tariff Number85365080
