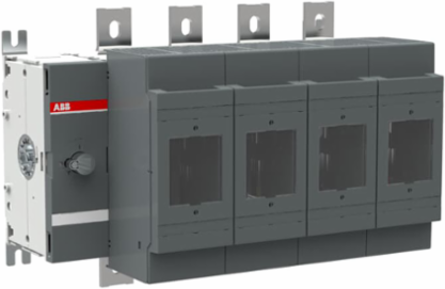

ABB OS600J04F OS600J04F FUSIBLE DISCONNECT SWITCH
- MPN: OS600J04F
- UPC: 804325349383
- PPN: ABB-OS600J04F
- UNSPSC: 39122233
CAD
$4234.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Switch Fuses,Front Operated,4-pole,04 (Left Side),Class J,600 A,Handle and shaft not included,Switched - Fusible Pole
Specifications
Dimensions
- Product Net Width
- 431 mm
- Product Net Depth / Length
- 233 mm
Product Net Height306 mm
Product Net Weight18.314 kg40.38 lb
Technical
- Rated Operational Current AC-21A (Ie)
- (500 V) 630 A(690 V) 630 A
- Rated Operational Current AC-23A (Ie)
- (380 ... 415 V) 630 A(500 V) 630 A(690 V) 630 A
- Rated Operational Power AC-23A (Pe)
- (220 ... 240 V) 200 kW(400 V) 355 kW(415 V) 355 kW(500 V) 450 kW(690 V) 630 kW
- Conventional Thermal Current (Ithe)
- Fully Enclosed 570 A
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 18 kiloampere rms
- Power Loss
- at Rated Operating Conditions per Pole 60 W
- Handle Type
- Handle and shaft not included
- Switches Operating Mechanism
- 04 (Left Side)
- Fuse Size
- 600 A
- Operating Mode
- Front Operated
- Mounting Type
- Base mounting
- Terminal Type
- Lug terminals
- Rated Current (In)
- Main Circuit 600 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 630 A(500 V) 630 A(690 V) 630 A
Rated Operational Current AC-23B (Ie)(380 ... 415 V) 630 A(500 V) 630 A(690 V) 630 A
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 630 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Operational VoltageMain Circuit 690 V AC
Rated Conditional Short-Circuit Current (Inc)(690 V) 80 kA
Pollution Degree3
Fourth Pole TypeSwitched - Fusible Pole
Position of Line TerminalsTop In - Bottom Out, Bottom In - Top Out
Fuse SystemClass J
StandardsUL98IEC 60947-3
Number of Poles4
Terminal Width39 mm
Classifications
- Object Classification Code
- Q
- IDEA Granular Category Code (IGCC)
- 5291 >> Fuse switch disconnector
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
ETIM 9EC001040 - Fuse switch disconnector
eClassV11.1 : 27371401
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- RoHS Information
- 1SCC011020D0201
REACH Declaration1SCC011021D0201
Technical UL/CSA
- Maximum Operating Voltage UL/CSA
- Main Circuit 600 V ACMain Circuit 250 V DC
- Horsepower Rating UL/CSA
- (acc. to UL 240 V) 200 Hp(acc. to UL 480 V) 400 Hp(acc. to UL 600 V) 500 Hp
Ampere Rating600 A
Tightening Torque UL/CSAWire-Clamp 500 in·lbCable Lug 480 in·lb
Ordering
- Minimum Order Quantity
- 1 piece
- Country of Origin
- Finland (FI)
Customs Tariff Number85365080
