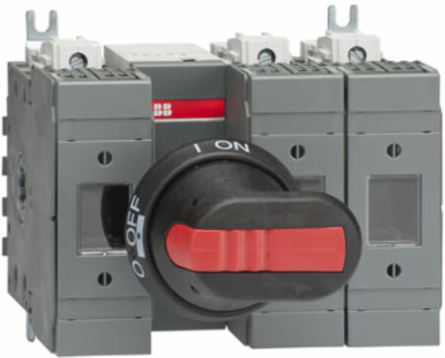

ABB OS60GJ12P OS60GJ12P FUSIBLE DISCONNECT SWITCH
- MPN: OS60GJ12P
- UPC: 888614017689
- PPN: ABB-OS60GJ12P
- UNSPSC: 39122233
CAD
$470.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Switch Fuses,Front Operated,3-pole,12 (Between the Poles),Class J,60 A,Handle and shaft included,
Specifications
Dimensions
- Product Net Width
- 145 mm
- Product Net Depth / Length
- 118 mm
Product Net Height112 mm
Product Net Weight1.3 kg
Technical
- Rated Operational Current AC-21A (Ie)
- (500 V) 60 A(690 V) 60 A
- Rated Operational Current AC-23A (Ie)
- (500 V) 60 A(690 V) 60 A
- Conventional Free-air Thermal Current (Ith)
- Θ = 40 °C 63 A
- Rated Impulse Withstand Voltage (Uimp)
- 12 kV
- Rated Operational Voltage
- Main Circuit 690 V AC
- Rated Conditional Short-Circuit Current (Inc)
- (690 V) 80 kA
- Pollution Degree
- 3
- Switches Operating Mechanism
- 12 (Between the Poles)
- Fuse Size
- 60 A
- Operating Mode
- Front Operated
- Mounting Type
- Base mounting
- Cable Cross-Section
- 2.5 ... 25 mm²
- Rated Current (In)
- Main Circuit 60 A
Rated Operational Current AC-22A (Ie)(500 V) 60 A(690 V) 60 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 18.5 kW(400 V) 30 kW(415 V) 30 kW(500 V) 37 kW(690 V) 55 kW
Conventional Thermal Current (Ithe)Fully Enclosed 63 A
Rated Insulation Voltage (Ui)1000 V
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 2.5 kiloampere rms
Power Lossat Rated Operating Conditions per Pole 7.5 W
Handle TypePistol handle and shaft included
Position of Line TerminalsTop In - Bottom Out, Bottom In - Top Out
Fuse SystemClass J
StandardsUL98IEC 60947-3
Number of Poles3
Terminal TypeScrew Terminals
Classifications
- Object Classification Code
- Q
- IDEA Granular Category Code (IGCC)
- 5291 >> Fuse switch disconnector
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
ETIM 9EC001040 - Fuse switch disconnector
eClassV11.1 : 27371401
E-Number (Finland)3601579
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- RoHS Information
- 1SCC011020D0201
REACH Declaration1SCC011021D0201
Technical UL/CSA
- Ampere Rating
- 60 A
- Tightening Torque UL/CSA
- Wire-Clamp 30 in·lbWire-Clamp 35 in·lb
Horsepower Rating UL/CSA(acc. to UL 240 V) 15 Hp(acc. to UL 480 V) 30 Hp(acc. to UL 600 V) 50 Hp
Ordering
- Minimum Order Quantity
- 1 piece
- Country of Origin
- Finland (FI)
Customs Tariff Number85365080
