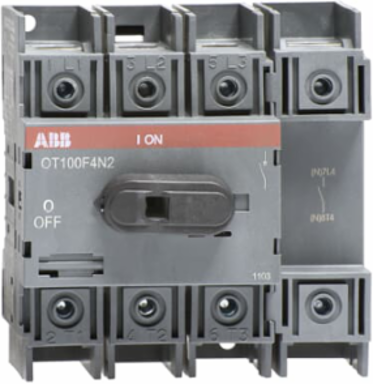

ABB OT100F4N2 OT100F4N2 SWITCH-DISCONNECTOR
- MPN: OT100F4N2
- UPC: 888614219717
- PPN: ABB-OT100F4N2
- UNSPSC: 39122233
CAD
$392.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
4-pole, front operated, base mounted, DIN-rail mountable switch-diconnector / non-fusible diconnect switch with front protected clamp terminals, handle and shaft are not included
Specifications
Dimensions
- Product Net Width
- 96.5 mm
- Product Net Depth / Length
- 74 mm
Product Net Height100 mm
Product Net Weight0.49 kg
Technical
- Rated Operational Current AC-21A (Ie)
- (380 ... 415 V) 100 A(500 V) 100 A(690 V) 100 A
- Rated Operational Current AC-23A (Ie)
- (380 ... 415 V) 80 A(500 V) 60 A(690 V) 40 A
- Conventional Free-air Thermal Current (Ith)
- Θ = 40 °C 115 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Operational Voltage
- Main Circuit 750 V
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 2.5 kA
- Power Loss
- at Rated Operating Conditions per Pole 4.0 W
- Handle Type
- KnobHandle and shaft not included
- Fourth Pole Type
- Switched - Simultaneous Function
- Distance Between Phases
- Standard
- Operating Mode
- Front operated
- Special Functions
- No
- Number of Poles
- 4
- Degree of Protection
- Front IP20
- Tightening Torque
- acc. IEC 60947-1 6 N·m
- Lock Type
- No
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 100 A(500 V) 100 A(690 V) 100 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 22 kW(400 ... 415 V) 37 kW(500 V) 37 kW(690 V) 37 kW
Conventional Thermal Current (Ithe)Fully Enclosed 115 A
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 750 V
Rated Short-Circuit Making Capacity (Icm)(690 V) 3.6 kA
Rated Conditional Short-Circuit Current (Inc)(125 A fuse, 415 V) 50 kA(125 A fuse, 690 V) 10 kA(63 A fuse, 690 V) 50 kA
Pollution Degree3
Fourth Pole PositionRight Side
Switches Operating MechanismMechanism on Top of the Switch
Position of Line TerminalsTop In - Bottom OutBottom In - Top Out
StandardsIEC 60947-3 / UL 98 / CSA C22.2 NO.4
Mounting TypeBase mounting
Cable Cross-SectionCu 10 ... 70 mm²
Terminal TypeScrew Terminals
Mechanical Durability20000
Classifications
- Object Classification Code
- Q
- IDEA Granular Category Code (IGCC)
- 5290 >> Disconnect switch
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- E-Number (Sweden)
- 3171073
ETIM 9EC000216 - Switch disconnector (low voltage)
eClassV11.1 : 27371403
E-Number (Finland)3601403
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Environmental Information1SCC301264D0201
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- REACH Declaration
- 1SCC011021D0201
Environmental Information1SCC301264D0201
RoHS Information1SCC011020D0201
Technical UL/CSA
- Maximum Operating Voltage UL/CSA
- 600 V
- Horsepower Rating UL/CSA
- (110 ... 120 V AC) Single Phase 5 Hp(240 V AC) Single Phase 15 Hp(440 ... 480 V AC) Single Phase 25 Hp(550 ... 600 V AC) Single Phase 20 Hp(220 ... 240 V AC) Three Phase 30 Hp(440 ... 480 V AC) Three Phase 50 Hp(550 ... 600 V AC) Three Phase 50 Hp
- Tightening Torque UL/CSA
- 55 in·lb
Ampere Rating100 A
Tightening Torqueacc. IEC 60947-1 6 N·m
Ordering
- Minimum Order Quantity
- 10 piece
- Country of Origin
- Finland (FI)
Customs Tariff Number85365080
Similar Products
