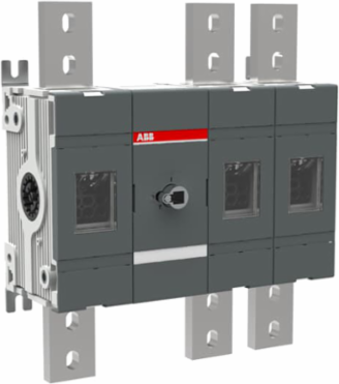

ABB OT1200U12 OT1200U12 SWITCH-DISCONNECTOR
- MPN: OT1200U12
- UPC: 804325408301
- PPN: ABB-OT1200U12
- UNSPSC: 39122233
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
3-pole, front operated, base mounted non-fusible diconnect switch, handle and shaft are not included, terminal bolt kit included
Specifications
Dimensions
- Product Net Width
- 334.5 mm
- Product Net Depth / Length
- 145.5 mm
Product Net Height372 mm
Product Net Weight17.2 kg
Technical
- Rated Operational Current AC-22A (Ie)
- (380 ... 415 V) 1600 A(500 V) 1600 A(690 V) 1600 A
- Rated Operational Power AC-23A (Pe)
- (380 ... 415 V) 710 kW(500 V) 900 kW(690 V) 1200 kW
- Rated Insulation Voltage (Ui)
- acc. to IEC/EN 60664-1 1000 V
- Rated Short-Circuit Making Capacity (Icm)
- (690 V) 110 kA
- Power Loss
- at Rated Operating Conditions per Pole 48 W
- Handle Type
- Handle and shaft not included
- Distance Between Phases
- Standard
- Operating Mode
- Front operated
- Special Functions
- No
- Number of Poles
- 3
- Terminal Type
- Lug terminals
- Mechanical Durability
- 6000
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 1250 A(500 V) 1250 A(690 V) 1250 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Operational VoltageMain Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 50 kA
Pollution Degree3
Switches Operating MechanismMechanism Between the Poles12 (Between the Poles)
Position of Line TerminalsTop In - Bottom OutBottom In - Top Out
StandardsIEC 60947-3 / UL 98 / CSA C22.2 NO.4
Mounting TypeBase mounting
Degree of ProtectionFront IP00
Tightening Torqueacc. IEC 60947-1 56.5 N·m
Lock TypeNo
Classifications
- Object Classification Code
- Q
- IDEA Granular Category Code (IGCC)
- 5290 >> Disconnect switch
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
ETIM 9EC000216 - Switch disconnector (low voltage)
eClassV11.1 : 27371403
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Environmental Information1SCC301233D0201
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- REACH Declaration
- 1SCC011021D0201
Environmental Information1SCC301233D0201
RoHS Information1SCC011020D0201
Technical UL/CSA
- Maximum Operating Voltage UL/CSA
- 600 V
- Tightening Torque
- acc. IEC 60947-1 56.5 N·m
Ampere Rating1200 A
Tightening Torque UL/CSA500 in·lb
Ordering
- Minimum Order Quantity
- 1 piece
- Country of Origin
- Finland (FI)
Customs Tariff Number85365080
