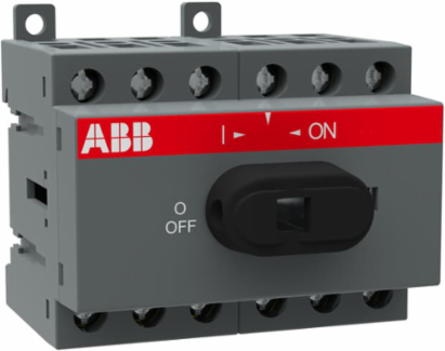

ABB OT16F6 OT16F6 SWITCH-DISCONNECTOR
- MPN: OT16F6
- UPC: 804325415392
- PPN: ABB-OT16F6
- UNSPSC: 39122233
CAD
$313.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
6-pole, front operated, base mounted, DIN-rail mountable switch-diconnector / non-fusible diconnect switch with protected clamp terminals, handle and shaft are not included
Specifications
Dimensions
- Product Net Width
- 70 mm
- Product Net Depth / Length
- 68 mm
Product Net Height68 mm
Product Net Weight0.21 kg
Technical
- Rated Operational Current AC-21A (Ie)
- (380 ... 415 V) 16 A(500 V) 16 A(690 V) 16 A
- Rated Operational Current AC-23A (Ie)
- (380 ... 415 V) 16 A(500 V) 16 A(690 V) 10 A
- Conventional Free-air Thermal Current (Ith)
- Θ = 40 °C 25 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Operational Voltage
- Main Circuit 750 V
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 0.5 kA
- Power Loss
- at Rated Operating Conditions per Pole 0.3 W
- Handle Type
- KnobHandle and shaft not included
- Distance Between Phases
- Standard
- Operating Mode
- Front operated
- Special Functions
- No
- Number of Poles
- 6
- Degree of Protection
- Front IP20
- Tightening Torque
- acc. IEC 60947-1 0.8 N·m
- Lock Type
- No
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 16 A(500 V) 16 A(690 V) 16 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 3 kW(400 ... 415 V) 7.5 kW(500 V) 7.5 kW(690 V) 7.5 kW
Conventional Thermal Current (Ithe)Fully Enclosed 25 A
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 750 V
Rated Short-Circuit Making Capacity (Icm)(690 V) 0.71 kA
Rated Conditional Short-Circuit Current (Inc)(40 A fuse, ≤415V) 50 kA(25 A fuse, 690 V) 50 kA
Pollution Degree3
Switches Operating MechanismMechanism on Top of the Switch
Position of Line TerminalsTop In - Bottom OutBottom In - Top Out
StandardsIEC 60947-3 / UL 508 / CSA C22.2 No. 14
Mounting TypeBase mounting
Cable Cross-SectionCu 0.75 ... 10 mm²
Terminal TypeScrew Terminals
Mechanical Durability20000
Classifications
- Object Classification Code
- Q
- IDEA Granular Category Code (IGCC)
- 5290 >> Disconnect switch
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
ETIM 9EC000216 - Switch disconnector (low voltage)
eClassV11.1 : 27371403
E-Number (Finland)3601424
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Environmental Information1SCC301262D0201
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- REACH Declaration
- 1SCC011021D0201
Environmental Information1SCC301262D0201
RoHS Information1SCC011020D0201
Technical UL/CSA
- Maximum Operating Voltage UL/CSA
- 600 V
- Horsepower Rating UL/CSA
- (110 ... 120 V AC) Single Phase 1 Hp(240 V AC) Single Phase 2 Hp(440 ... 480 V AC) Single Phase 5 Hp(550 ... 600 V AC) Single Phase 7.5 Hp(220 ... 240 V AC) Three Phase 5 Hp(440 ... 480 V AC) Three Phase 10 Hp(550 ... 600 V AC) Three Phase 10 Hp
- Tightening Torque UL/CSA
- 7 in·lb
Ampere Rating20 A
Tightening Torqueacc. IEC 60947-1 0.8 N·m
Ordering
- Minimum Order Quantity
- 1 piece
- Country of Origin
- Finland (FI)
Customs Tariff Number85365080
