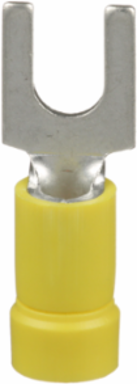

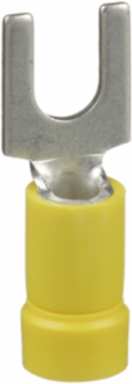

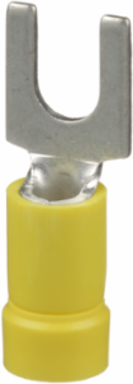

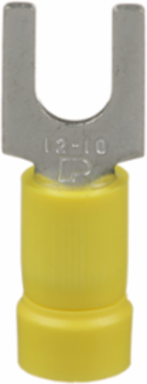

Panduit PV10-10F-L Pan-Term® PV10-10F-L Fork Terminal, Yellow, Vinyl, 10-14 AWG, #10 Stud, PK50
Panduit PV10-10F-L Pan-Term® PV10-10F-L Fork Terminal, Yellow, Vinyl, 10-14 AWG, #10 Stud, PK50
- MPN: PV10-10F-L
- UPC: 074983804146
- PPN: PAN-PV10-10F-L
- UNSPSC: 39121409
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$0.83/ EA
Description
The PV10-10F-L Pan-Term® Terminal is a vinyl insulated, fork terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. Extented barrel insulation provides protection and strain relief when crimped.
Specifications
Packaging Details
- UPC
- 07498380414
- Standard Package Volume Ft3
- 0.0067
- Std Package Height In
- 1.9
- Std Package Length In
- 4.35
- Std Package Width In
- 1.95
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 50
- Standard Carton Volume Ft3
- 0.0668
- Std Carton Height In
- 4.4
- Std Carton Length In
- 10.1
- Std Carton Width In
- 4.5
- Std Ctn Qty
- 500
- EAN
- 00074983804146
- California Pro65 Cancer
- No
- Mercury Content Indicator
- N
- Restricted Use of Hazardous Substances
- N
- Min Order Qty
- 250.0000
- Pallet Volume
- 0.000000
- RoHS Compliant
- Compliant
GTIN Package00074983804146
Standard Package Weight Pounds0.2500
Std Package Height MM48.26
Std Package Length MM110.49
Std Package Width MM49.53
UOM EA PKPK
GTIN Carton50074983804141
Standard Carton Weight Pounds2.5000
Std Carton Height MM111.76
Std Carton Length MM256.54
Std Carton Width MM114.3
Min. Order UOMPiece
REACH StatusN
ARRA CompliantY
Lead Content IndicatorN
Hazardous Material FlagN
Pallet Quantity0
Pallet Weight0.0000
Specifications
- Country of Origin
- Mexico
- Product Segment
- IEI
- Tongue Length (In.)
- 1.04
- Color Code
- Yellow
- Flammability Rating
- UL 94 V-0
- Overall Length (In.)
- 1.04
- Overall Width (In.)
- 0.37
- Maximum Voltage (V)
- 600
- Tongue Length (mm)
- 26.4
- For Use With
- CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
- Tongue Width (In.)
- 0.37
- Maximum Metric Conductor Size (mm²)
- 6
- Overall Width (mm)
- 9.4
- Maximum Operating Temperature (°C)
- 105
- Fork Type
- Standard
- Tongue Thickness (mm)
- 1
- Stud Hole Size (mm)
- 5
- Maximum Wire Insulation Diameter (mm)
- 5.7
- Minimum Metric Conductor Size (mm²)
- 2.5
- Barrel Type
- Funnel Entry
- Wire Size
- 14-10 AWG
Any Reason Not to SellN
Insulation MaterialVinyl
Overall Length (mm)26.4
Sub BrandPan-Term®
Tongue Width (mm)9.4
Stud Hole Size (In.)#10
Insulation TypeVinyl
Product TypeFork Terminal
Wire Strip Length (In.)5/16
Maximum Operating Temperature (°F)221
Seam TypeBrazed
Wire Strip Length (mm)7.9
Stud Size#10
Tongue Thickness (In.)0.04
Maximum Wire Insulation Diameter (In.)0.225
Packaging TypeBottle
Finish/CoatingTin-Plated
Base MaterialCopper
Maximum Voltage (kV)0.6
Copper Conductor Size14-10 AWG
