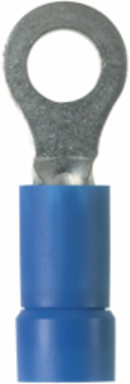

Panduit PV14-10R-C Pan-Term® PV14-10R-C Ring Terminal, Blue, Vinyl, 14-16 AWG, #10 Stud, PK100
Panduit PV14-10R-C Pan-Term® PV14-10R-C Ring Terminal, Blue, Vinyl, 14-16 AWG, #10 Stud, PK100
- MPN: PV14-10R-C
- UPC: 074983801206
- PPN: PAN-PV14-10R-C
- UNSPSC: 39121409
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$0.66/ EA
Description
The PV14-10R-C Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel serrations assure good wire contact and maximum tensile strength.
Specifications
Packaging Details
- UPC
- 07498380120
- Standard Package Volume Ft3
- 0.0074
- Std Package Height In
- 1.75
- Std Package Length In
- 3.6
- Std Package Width In
- 1.8
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 100
- Standard Carton Volume Ft3
- 0.0368
- Std Carton Height In
- 3.7
- Std Carton Length In
- 9.3
- Std Carton Width In
- 2.1
- Std Ctn Qty
- 500
- EAN
- 00074983801206
- California Pro65 Cancer
- No
- Mercury Content Indicator
- N
- Restricted Use of Hazardous Substances
- N
- Min Order Qty
- 500.0000
- Pallet Volume
- 0.000000
- RoHS Compliant
- Compliant
GTIN Package00074983801206
Standard Package Weight Pounds0.2900
Std Package Height MM44.45
Std Package Length MM91.44
Std Package Width MM45.72
UOM EA PKPK
GTIN Carton50074983801201
Standard Carton Weight Pounds1.4500
Std Carton Height MM93.98
Std Carton Length MM236.22
Std Carton Width MM53.34
Min. Order UOMPiece
REACH StatusN
ARRA CompliantY
Lead Content IndicatorN
Hazardous Material FlagN
Pallet Quantity0
Pallet Weight0.0000
Specifications
- Country of Origin
- Mexico
- Product Segment
- IEI
- Maximum Metric Conductor Size (mm²)
- 2.5
- Base Material
- Copper
- Overall Width (mm)
- 7.9
- Stud Hole Size (In.)
- #10
- Seam Type
- Brazed
- Product Type
- Ring Terminal
- Overall Length (mm)
- 23.4
- Insulation Material
- Vinyl
- Tongue Thickness (mm)
- 0.8
- Tongue Thickness (In.)
- 0.03
- Flammability Rating
- UL94V-0
- Maximum Wire Insulation Diameter (mm)
- 4.3
- Tongue Width (mm)
- 7.9
- Color Code
- Blue
- Maximum Voltage (V)
- 600
- Overall Width (In.)
- 0.31
- Wire Size
- 16-14 AWG
Any Reason Not to SellN
Maximum Voltage (kV)0.6
For Use WithCT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
Maximum Operating Temperature (°C)105
Overall Length (In.)0.92
Wire Strip Length (In.)5/16
Sub BrandPan-Term®
Wire Strip Length (mm)7.9
Maximum Wire Insulation Diameter (In.)0.17
Stud Size#10
Maximum Operating Temperature (°F)221
Minimum Metric Conductor Size (mm²)1.5
Stud Hole Size (mm)5
Finish/CoatingTin-Plated
Barrel TypeFunnel Entry
Tongue Width (In.)0.31
Packaging TypeBottle
Copper Conductor Size16-14 AWG
