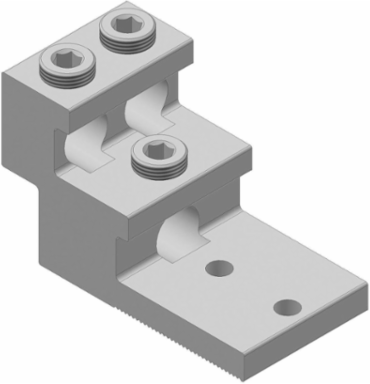

CMC 3ABV-600 Panelboard Solderless Lugs,Type: ABV ,600 -2 AWG ,Al/Cu Rated
- MPN: 3ABV-600
- UPC: 192663078578
- PPN: HBL-C58700806
CAD
$194.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Panelboard Solderless Lugs,Type: ABV ,600 -2 AWG ,Al/Cu Rated. The unique ridges formed on the bottom of the contact surface are designed to provide contact points for anelectrically secure joint of the lowest resistance for current flow. The screws used to clamp the conductors are designed to extend beyond the barrel sides of the conductor to allow a better, more secure compression of the conductor. This design spreads the conductor trands to help dissipate heat, and improve its pull-out safety features and capabilities.The design of the wire way provides optimum transfer of current, creating a straight line flow through the connector for the least possible path of electrical resistance. A positive wire stop is also provided.
Features
- The unique ridges formed on the bottom of the contact surface are designed to provide contact points for an electrically secure joint of the lowest resistance for current flow
- The screws used to clamp the conductor are designed to extend beyond the barrel sides of the conductor to allow a better, more secure compression of the conductor. This design spreads the conductor strands to help dissipate heat and improve its pull-out safety features and capabilities.
- The design of the wire way provides optimum transfer of current creating a straight line flow through the connector for the least possible path of electrical resistance. In addition, a positive wire stop is provided.
- For installation,CMC® recommends the use of an insulated Allen wrench.
- Electro tin plated to provide low contact resistance and protection against corrosion
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 4.9 in x 2.5 in x 3 in
- Length
- 4.9 in
- Width
- 2.5 in
- Type
- Bolted Lugs & Terminals
- Freight Class Code
- 06120000
- Image Actual Or Representative
- A
- Material
- Aluminum
- BOX SIZE
- (in)
- Case - SCC-14 Next Lower Level Sub Pack
- 30192663078579
- Package Quantity
- 12 EA
- NAICS Code
- 3359319101
Conductor - Copper Str Size Range600 Kcmil-2 AWG
Height3 in
Product Type1 Cable
Thickness0.5 in
Class CodeC02
Harmonization Code8535908020
Sub Class CodeC02C203
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00192663078578
Package - GTIN - Package30192663078579
Package Weight1.191 lb.
