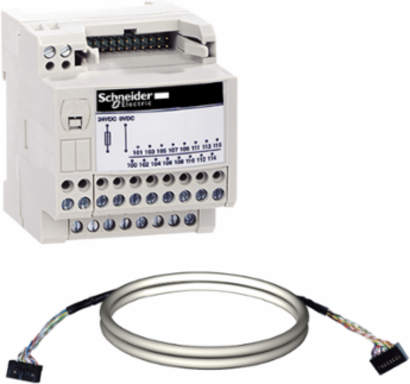

Schneider Electric ABE7H20E200 Passive I/O Sub-Base, 16 Channels, DC Supply, 0.41 kg
- MPN: ABE7H20E200
- PPN: SCH-ABE7H20E200
CAD
$184.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Passive I/O Sub-Base from Schneider Electric is designed to streamline automation processes with its efficient configuration for connecting various I/O modules. Featuring 16 channels and a DC supply, this sub-base enhances the versatility of your control system, providing reliable connection points for data acquisition and communication. Weighing just 0.41 kg, it is compact yet robust enough to support diverse industrial applications, making it an essential component for modern automation systems. By facilitating seamless integration of input and output devices, this sub-base plays a pivotal role in optimizing performance within complex control environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, France, Latvia
Complementary Attributes
- Maximum Current Per Output Common
- 1.8 A
Maximum Supply Current1.8 A
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Certificate Agency
- UL, CSA, GL, DNV, EAC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.05748136837875731, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.10194013819265978, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 1 749 kg CO2 eq., 1749.1248641439533
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Fixing Mode
- by clips (35 mm symmetrical DIN rail)by screws (solid plate with fixing kit)
- Number Of Channels
- 16
- Number Of Terminal Per Channel
- 1
- Product Or Component Type
- passive discrete I/O sub-base
- Resistance To Electrostatic Discharge
- 4 kV contact) level 3 IEC 61000-4-28 kV air) level 3 IEC 61000-4-2
- Resistance To Incandescent Wire
- 750 °C 30 s IEC 60695-2-11
- Returnability
- No
- Software Version
- v6.2.5-6
- Supply Circuit Type
- DC
- Tightening Torque
- 0.6 N.m flat Ø 3.5 mm
- Vibration Resistance
- 2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To connect I/O to channels of operative parts for 10 years, 100% of the time in industrial atmosphere.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 3784.32
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- [Ui] Rated Insulation Voltage
- 2000 V terminals/mounting rails
- Short-circuit Protection
- 2 A internal fuse, 5 x 20 mm, fast blow PLC end)
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536904000
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Connections - Terminalsscrew type terminals, 1 x 0.09...1 x 1.5 mm² 28 AWG...16 AWG) flexible with cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² 26 AWG...12 AWG) solidscrew type terminals, 1 x 0.14...1 x 2.5 mm² 26 AWG...14 AWG) flexible without cable endscrew type terminals, 2 x 0.09...2 x 0.75 mm² 28 AWG...20 AWG) flexible with cable endscrew type terminals, 2 x 0.2...2 x 2.5 mm² 24 AWG...14 AWG) solid
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.8 kg CO2 eq., 0.8287877615026583
Carbon Footprint Of The Manufacturing Phase [A1 To A3]11 kg CO2 eq., 10.797775414248123
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI121229EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1845
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Current Per Channel0.5 A
Installation CategoryII IEC 60664-1
Number Of Horizontal Rows2
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductModicon ABE7
Resistance To Fast Transients2 kV level 3 IEC 61000-4-4
Resistance To Radiated Fields10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
Shock Resistance15 gn 11 ms IEC 60068-2-27
Status Led1 LED per channel (Green) channel status1 LED (Green) power ON
Sustainable PackagingNo
Total Lifecycle Carbon Footprint1 761 kg CO2 eq.
Voltage Drop On Power Supply Fuse0.3 V
Pep CodeENVPEP1212029_V4
Pep Verification Date2026-06-18
Psr VersionNo PSR
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Latvia, LV
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential In %6
[Us] Rated Supply Voltage19...30 V IEC 61131-2
Sub-base Typelow cost sub-base
Package Weight(Lbs)385.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2-5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2
- Product Compatibility
- Modicon Premium PLC, Modicon TSX Micro PLC
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI121229EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2026-06-18
- Psr Version
- No PSR
Ambient Air Temperature For Storage-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2
Take BackNo
China Rohs RegulationX
Carbon Footprint1760.9108488262755
Environmental DisclosureENVPEP1212029_V4
Ip Degree Of ProtectionIP2X conforming to IEC 60529
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1212029_V4
Pcr VersionPCR-4-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- passive discrete I/O sub-base
Range Of ProductModicon ABE7
ETIM
- ETIM 8
- EC002585
ETIM 9EC002585
Output Attributes
- Maximum Current Per Output Common
- 1.8 A
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
