Schneider Electric XACA2173 Harmony XAC Pendant Control Station, Yellow, 2 Buttons, IP65, 40W
Schneider Electric XACA2173 Harmony XAC Pendant Control Station, Yellow, 2 Buttons, IP65, 40W
- MPN: XACA2173
- PPN: SCH-XACA2173
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$362.20/ EA
Description

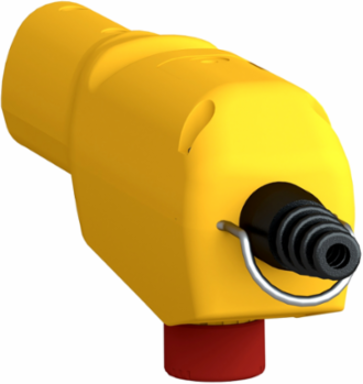

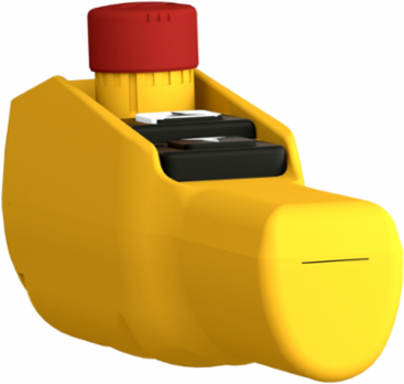

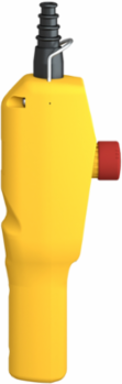

This yellow, complete ready to use, pendant station for control circuits is designed for control of 2-speed hoist motors. Its pistol grip design makes it very intuitive and comfortable for the operator to use. It comprises a polypropylène enclosure with 2 booted push buttons mechanically interlocked and 1 trigger action latching emergency stop diameter 30mm operator. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. This robust pendant control station complies with the safety requirements of IEC standards.
Specifications
Complementary
- Product Certifications
- UL || CSA
- Control Station Application
- control of 2-speed hoist motor
- Ambient Air Temperature For Operation
- -25-70 °C
- Terminals Description Iso N°1
- (13-14)NO || (23-24)NO_CL
- Maximum Resistance Across Terminals
- 25 MOhm
- Cable Entry
- rubber sleeve with stepped entry 7-15 mm
- Enclosure Type
- complete ready for use
- Net Weight
- 0.36 kg
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Control Station Type
- double insulated
- Connections - Terminals
- screw clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end
- Ambient Air Temperature For Storage
- -40-70 °C
- Overvoltage Category
- class II IEC 61140
- Mechanical Interlocking
- with mechanical interlocking
- Mechanical Durability
- 1000000 cycles
- Control Button Type
- stop push-button Ø 30 mm 1 NC latching || first push-button 2 NO raise, slow-fast || second push-button 2 NO lower, slow-fast
- Electrical Circuit Type
- control circuit
- Contact Code Designation
- A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
- Rated Operational Power In W
- 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
Ik Degree Of ProtectionIK08 conforming to IEC 62262
Terminal Identifier(13-14)NO || (11-12)NC
Terminals Description Iso N°2(11-12)NC
StandardsIEC 60204-32 || IEC 60947-5-1 || UL 508 || CSA C22.2 No 14
Short-Circuit Protection10 A fuse protection cartridge gG
Shock Resistance100 gn IEC 60068-2-27
Vibration Resistance15 gn 10-500 Hz)IEC 60068-2-6
Product CompatibilityZB2BE102 for emergency stop || ZB2BE101 + ZB2BE201 for each direction
Ip Degree Of ProtectionIP65 IEC 60529
Control Typeintuitive
[Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
Control Station Composition2 booted push-buttons + 1 emergency stop
Contact Operationslow-break || staggered
Control Station Colouryellow
Operating Force13-15 N
[Ithe] Conventional Enclosed Thermal Current10 A
Enclosure Materialpolypropylene
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Specifications
- Range Of Product
- Harmony XAC
- Device Short Name
- XACA pistol grip
Product Or Component Typependant control station
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP070905EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
