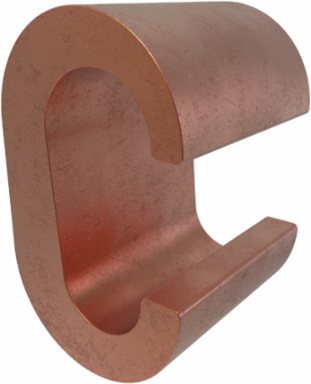

ILSCO ULT-11 Permaground Copper Grounding C Crimp, Main Conductor Range 4/0-3/0 Sol, Tap Range 2/0-1/0 Sol, UL, CSA
- MPN: ULT-11
- UPC: 676566800592
- PPN: ILC-ULT-11
- UNSPSC: 39121448
CAD
$46.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
UTILCO Copper Compression Grounding C Crimp, Compression connection, Copper material, Bare plated connector, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, Copper Primary Conductor 4/0 Str - 3/0 Str and 4/0 Sol - 3/0 Sol, Copper Secondary Conductor 2/0 Sol - 1/0 Sol and 2/0 Str - 1/0 Str, rated for 35 kV, primary color Copper, die index D3,
Documentation & Downloads
Specifications
Key Specifications
- Type
- Resource
- ItemUPCCode
- 67656680059
- ItemCatalogIndicator
- U
- ItemConductorRangeCUStrandedPrimaryrunmainline
- 4/0 Str - 3/0 Str
- ItemConductorSizeCUPrimaryrunmainline
- 4/0 Sol,3/0 Sol,4/0 Str,3/0 Str
- ItemConductorRangeCUSolidSecondarytapload
- 2/0 Sol - 1/0 Sol
- ItemLength
- 1
- ItemWidth
- 1.075
- ItemHeight
- 1.628
- ItemWeight
- 0.316405769346442
- ItemConductorMaterial
- Copper
- ItemColor
- Copper
- ItemTemperatureRating
- 90°C
- ItemCSAFileNumber
- LR-29601
- ItemULControlNumber
- 453G
- ItemULCULUSSpecifications
- UL 486A/B Listed,UL 467 Listed
- ItemConnection
- Compression
- ItemILSCOsDieIndexNumber
- D3
- ItemBagQuantity
- 1
ItemStatusReady
ItemUNSPSCCode39121448
ItemDualRatedFalse
ItemConductorRangeCUSolidPrimaryrunmainline4/0 Sol - 3/0 Sol
ItemConductorRangeCUStrandedSecondarytapload2/0 Str - 1/0 Str
ItemConductorSizeCUSecondarytapload2/0 Sol,1/0 Sol,2/0 Str,1/0 Str
ItemLengthmm25.4
ItemWidthmm27.305
ItemHeightmm41.3512
ItemMaterialCopper
ItemConnectorFinishBare
ItemDirectBurialTrue
ItemVoltageRating35 kV
ItemCSAStandardC22.2 No. 65-03
ItemULFileNumberE6207
ItemProp65This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
ItemConductorTypeSolid,Stranded
ItemNumberofMountingHoles0
