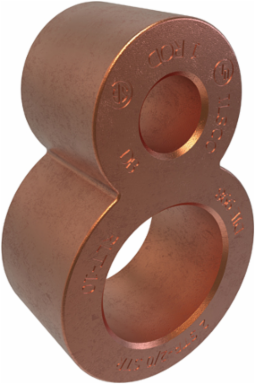

ILSCO RLT-10 Permaground Copper Grounding Connector, Main Conductor Range 2/0-2, Tap Range 2/0-2, Ground Rod Size 1in, UL, CSA
- MPN: RLT-10
- UPC: 783669003567
- PPN: ILC-RLT-10
CAD
$129.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Permaground Copper Grounding Connector, Main Conductor Range 2/0-2, Tap Range 2/0-2, Ground Rod Size 1in, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 2.442 in | 62.0268 mm
- Weight
- 0.523906618131419 lbs
Length1.6 in | 40.64 mm
Dimensions
- Height BX (IN)
- 3
- Length (mm)
- 40.64
- Width BX (IN)
- 10.5
Height (mm)62.0268
Weight BX (LB)10.742
Testing Standards
- CSA File Number
- LR-5465
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL / CULUS Specification
- UL 467 Listed
CSA StandardC22.2 No. 41
UL Control Number667P
UL File NumberE34440
Additional Class Attributes
- Barrel Marking
- Hard
- ILSCOs Die Index Number
- 998, 1011
ILSCOs Die Catalog NumberILD-998
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
Connector FinishBare
Conductor Ranges
- Conductor Range CU Stranded (Primary, run, main, line)
- 2/0 Str - 2 Str
- Ground Rod Size
- 1
Conductor Range CU Stranded (Secondary, tap, load)2/0 Str - 2 Str
Additional Technical Specifications
- Conductor Type
- Stranded
General
- Bag Quantity
- 1
- Direct Burial
- Yes
- NEMA Code
- S-573-3
Carton Quantity DescriptionSTD PACK QTY 20
Dual RatedNo
UPC Code78366900356
Color
- Color
- Copper
