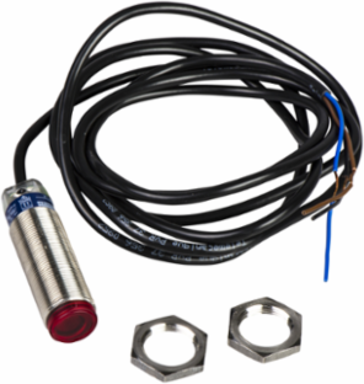

Telemecanique Sensors XUBTAPSNL2 Photoelectric sensors XU, XUBT, polarised, Sn 1.4 m, 12...24 VDC, cable 2 m
- MPN: XUBTAPSNL2
- PPN: TES-XUBTAPSNL2
- UNSPSC: 39121528
CAD
$590.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Photoelectric sensors XU, XUBT, polarised, Sn 1.4 m, 12...24 VDC, cable 2 m
Documentation & Downloads
Specifications
Key Specifications
| Electrical Connection | cable |
|---|---|
| Discrete Output Function | 1 NO or 1 NC programmable |
| Cable Length | 2 m |
| Line Of Sight Type | axial |
| Material | plastic |
| Series Name | Application packaging |
| Detection System | reflex |
| Supply Circuit Type | DC |
| [Sn] Nominal Sensing Distance | 0-1.4 m with reflector XUZ C50/C50HP |
| Discrete Output Type | PNP |
|---|---|
| Range Of Product | Telemecanique Photoelectric sensors XU |
| Emission | coaxial polarised red reflex |
| Sensor Name | XUBT |
| Wiring Technique | 3-wire |
| Product Specific Application | detection of transparent object |
| Sensor Design | cylindrical M18 |
| Electronic Sensor Type | photo-electric sensor |
Complementary
| Current Consumption | 45 mA no-load |
|---|---|
| Maximum Delay Response | 500 ms |
| Status Led | supply on 1 LED green) || stability 1 LED red) || output state 1 LED yellow) |
| Spot Diameter | 1.46 in (37 mm) |
| Net Weight | 0.11 kg |
| Beam Angle | 1.5 ° |
| Maximum Delay First Up | 200 ms |
| Switching Capacity In Ma | 100 mA overload and short-circuit protection) |
| Enclosure Material | PBT |
| Kit Composition | sensor || reflector XUZC50HP |
| Switching Frequency | 1000 Hz |
|---|---|
| Type Of Output Signal | discrete |
| Lens Material | PMMA |
| Maximum Voltage Drop | <1.5 V closed state) |
| Blind Zone | 0 mm |
| Maximum Delay Recovery | 500 ms |
| Supply Voltage Limits | 10-32 V DC |
| Wire Insulation Material | PvR |
| Output Type | solid state |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
Environment
| Product Certifications | UL || CE || CSA |
|---|---|
| Vibration Resistance | 7 gn +/- 1 mm 10-55 Hz) IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Ambient Air Temperature For Operation | 0-55 °C |
|---|---|
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Ip Degree Of Protection | IP65 IEC 60529 double insulation) || IP67 IEC 60529 double insulation) |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP111230EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Circularity Profile | ENVEOLI111208EN |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
