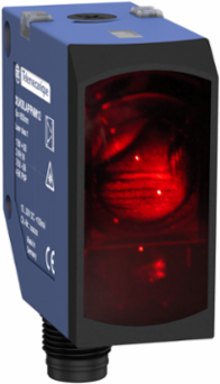

Telemecanique Sensors XUK8LAPPNM12 Photoelectric sensors XU, photo electric laser sensor, XUK, background suppression, Sn 0,8 m -10...30 VDC M12
- MPN: XUK8LAPPNM12
- PPN: TES-XUK8LAPPNM12
- UNSPSC: 39121528
CAD
$416.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This photo-electric sensor is part of the XU Application, single mode range. It is designed for assembly applications. It is a compact design 50mm x 50mm, plastic sensor with an M12, 4-pin connector. ECOLAB certified, this sensor is suitable for food and beverage applications. Diffuse system with backgroung suppression, class 1 red laser transmission. Sensing distance from 5mm to 800mm, according to the colour of the object to be detected.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- 1 male connector M12, 4 pins
- Discrete Output Function
- 1 NO or 1 NC programmable
- Range Of Product
- Telemecanique Photoelectric sensors XU
- Sensor Name
- XUK
- Wiring Technique
- 4-wire
- Detection System
- diffuse with background suppression
- Supply Circuit Type
- DC
- [Sn] Nominal Sensing Distance
- 0.8-0.8 m diffuse with background suppression
Discrete Output TypePNP
Type Of Output Signaldiscrete
Emissionred laser diffuse with background suppression class 1
Materialplastic
Series NameApplication assembly || Application material handling
Sensor Designcompact 50 x 50
Electronic Sensor Typephoto-electric sensor
Complementary
- Current Consumption
- <= 30 mA no-load
- Switching Frequency
- <= 250 Hz
- Status Led
- 1 LED yellow)output state || 1 LED green/yellow)supply on/output state
- Lens Material
- PMMA
- Add On Input
- external teach
- Maximum Delay Recovery
- 0.5 ms
- Maximum Sensing Distance
- 0.8 m diffuse with background suppression
- Switching Capacity In Ma
- <= 100 mA overload and short-circuit protection)
- Width
- 23 mm
- Depth
- 50 mm
Height50 mm
Maximum Delay Response0.5 ms
Setting-Upusing teach button or remote teaching
Maximum Voltage Drop<2 V
Net Weight0.035 kg
Maximum Delay First Up300 ms
Supply Voltage Limits10-30 V DC
Enclosure MaterialABS/PC
Output Typesolid state
[Us] Rated Supply Voltage24 V DC reverse polarity protection
Environment
- Product Certifications
- cULus || Ecolab || CE
- Ambient Air Temperature For Operation
- -20-50 °C, UL || -20-60 °C discrete output
- Ambient Air Temperature For Storage
- -20-80 °C
Vibration Resistance7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
Shock Resistance30 gn 11 ms) IEC 60068-2-27
Ip Degree Of ProtectionIP67 IEC 60529 || IP69K DIN 40050
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
