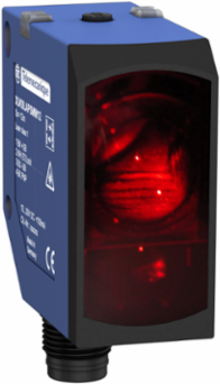

Telemecanique Sensors XUK9LAPSMM12 Photoelectric sensors XU, photo electric laser sensor, XUK, polarised reflex, Sn 14 m, 10...30 VDC, M12
- MPN: XUK9LAPSMM12
- PPN: TES-XUK9LAPSMM12
- UNSPSC: 39121528
CAD
$318.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the XU range, an offer of photoelectric sensors. This photoelectric sensor in XUK compact 50mm x 50mm design. It has a polarised reflex detection system. It supports 12m polarised reflex need reflector XUZC50HP nominal sensing distance and 1 normally opened or 1 normally closed programmable, PNP discrete type of output signal. It is furnished with 4-pin M12 male connector for electrical connection. It is an IP67 and IP69K rated product. This sensor has a rated supply voltage of 24V DC with reverse polarity protection, a no-load current consumption of ≤60mA and a switching frequency of ≤2000Hz. It has red laser polarised reflex class 1 emission. The enclosure is made of ABS/PC with PMMA lens. Its dimensions are 23mm (Width) x 50mm (Depth) x 50mm (Height) and weighs 0.035kg. It is ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. This product is certified by Ecolab, CE and CULus. This photoelectric sensor has 2 LEDs for output state and supply on/output state.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- 1 male connector M12, 4 pins
- Discrete Output Function
- 1 NO or 1 NC programmable
- Range Of Product
- Telemecanique Photoelectric sensors XU
- Sensor Name
- XUK
- Wiring Technique
- 4-wire
- Detection System
- polarised reflex
- Supply Circuit Type
- DC
- [Sn] Nominal Sensing Distance
- 12-12 m polarised reflex need reflector XUZC50HP
Discrete Output TypePNP
Type Of Output Signaldiscrete
Emissionred laser polarised reflex class 1
Materialplastic
Series NameApplication assembly || Application material handling
Sensor Designcompact 50 x 50
Electronic Sensor Typephoto-electric sensor
Complementary
- Current Consumption
- <= 60 mA no-load
- Switching Frequency
- <= 2000 Hz
- Status Led
- 1 LED yellow)output state || 1 LED green/yellow)supply on/output state
- Lens Material
- PMMA
- Net Weight
- 0.035 kg
- Maximum Delay First Up
- 300 ms
- Supply Voltage Limits
- 10-30 V DC
- Enclosure Material
- ABS/PC
- Output Type
- solid state
- [Us] Rated Supply Voltage
- 24 V DC reverse polarity protection
Height50 mm
Maximum Delay Response2 ms
Setting-Upusing teach button or remote teaching
Maximum Voltage Drop<2 V
Maximum Delay Recovery2 ms
Maximum Sensing Distance14 m polarised reflex need reflector XUZC50HP
Switching Capacity In Ma<= 100 mA overload and short-circuit protection)
Width23 mm
Depth50 mm
Environment
- Product Certifications
- Ecolab || CE || cULus
- Ambient Air Temperature For Operation
- -20-60 °C || -20-50 °C
- Ambient Air Temperature For Storage
- -20-80 °C
Vibration Resistance7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
Shock Resistance30 gn 11 ms) IEC 60068-2-27
Ip Degree Of ProtectionIP67 IEC 60529 || IP69K DIN 40050
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
