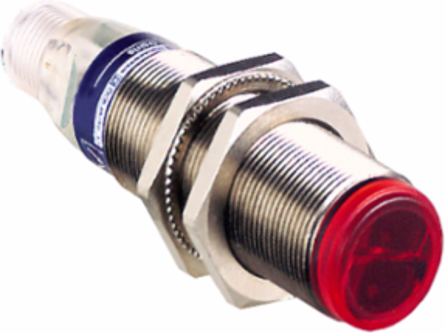

Telemecanique Sensors XUBT1PSNM12 Photoelectric sensors XU, transparent material, Sn 0...0.8 mm, NO or NC, M12
- MPN: XUBT1PSNM12
- PPN: TES-XUBT1PSNM12
CAD
$250.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Photoelectric sensors XU, transparent material, Sn 0...0.8 mm, NO or NC, M12
Documentation & Downloads
Specifications
Key Specifications
| Series Name | Application packaging |
|---|---|
| Discrete Output Type | PNP |
| Range Of Product | Telemecanique Photoelectric sensors XU |
| Emission | dual lens red reflex |
| Sensor Design | cylindrical M18 |
| Line Of Sight Type | axial |
| Sensor Name | XUBT1 |
| Material | plastic |
| Electrical Connection | 1 male connector M12, 4 pins |
|---|---|
| Discrete Output Function | 1 NO or 1 NC programmable |
| Product Specific Application | detection of transparent object |
| Detection System | reflex |
| Supply Circuit Type | DC |
| Electronic Sensor Type | photo-electric sensor |
| [Sn] Nominal Sensing Distance | 0-0.8 m need reflector XUZC50 |
| Wiring Technique | 3-wire |
Complementary
| Current Consumption | 30 mA no-load |
|---|---|
| Switching Frequency | 250 Hz |
| Maximum Delay Recovery | 2000 ms |
| Maximum Delay First Up | 2000 ms |
| Lens Material | PMMA |
| Spot Diameter | 37 mm |
| Switching Capacity In Ma | 100 mA overload and short-circuit protection) |
| Output Type | solid state |
| Kit Composition | reflector XUZC50 || sensor |
| Blind Zone | 100 mm |
| Beam Angle | 1.5 ° |
|---|---|
| Maximum Delay Response | 2000 ms |
| Type Of Output Signal | discrete |
| Status Led | supply on 1 LED green) || output state 1 LED yellow) || alignment 1 LED red) |
| Supply Voltage Limits | 10-32 V DC |
| Maximum Voltage Drop | <1.5 V closed state) |
| Enclosure Material | PBT |
| Net Weight | 0.045 kg |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
Environment
| Product Certifications | CSA || UL || CE |
|---|---|
| Ambient Air Temperature For Storage | -40-70 °C |
| Vibration Resistance | 7 gn +/- 1 mm 10-55 Hz) IEC 60068-2-6 |
| Ambient Air Temperature For Operation | 0-55 °C |
|---|---|
| Ip Degree Of Protection | IP65 IEC 60529 double insulation) || IP67 IEC 60529 double insulation) |
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Circularity Profile | ENVEOLI111208EN |
|---|---|
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP111230EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
