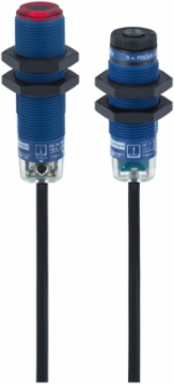

Telemecanique Sensors XUBLAPCNL2 Photoelectric sensors XU, XUB, thru beam, laser, Sn 100 m, 12...24 VDC, cable 2 m
- MPN: XUBLAPCNL2
- PPN: TES-XUBLAPCNL2
CAD
$671.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Photoelectric sensors XU, XUB, thru beam, laser, Sn 100 m, 12...24 VDC, cable 2 m
Documentation & Downloads
Specifications
Key Specifications
| Electrical Connection | cable |
|---|---|
| Discrete Output Function | 1 NO or 1 NC programmable |
| Range Of Product | Telemecanique Photoelectric sensors XU |
| Emission | red laser class 1 670 nm IEC 825-1 |
| Material | plastic |
| Series Name | Application material handling |
| Sensor Design | cylindrical M18 |
| Electronic Sensor Type | photo-electric sensor |
| Discrete Output Type | PNP |
|---|---|
| Type Of Output Signal | discrete |
| Cable Length | 2 m |
| Sensor Name | XUB |
| Wiring Technique | 3-wire |
| Detection System | thru beam |
| Supply Circuit Type | DC |
| [Sn] Nominal Sensing Distance | 100-100 m |
Complementary
| Current Consumption | 25 mA no-load |
|---|---|
| Maximum Delay Response | 0.4 ms |
| Setting-Up | with sensitivity adjustment |
| Maximum Voltage Drop | <1.5 V closed state) |
| Blind Zone | 0 mm |
| Maximum Delay First Up | 80 ms |
| Switching Capacity In Ma | <= 100 mA overload and short-circuit protection) |
| Output Type | solid state |
| Kit Composition | transmitter + receiver XUBLAKCNL2T + XUBLAPCNL2R |
| Switching Frequency | 1500 Hz |
|---|---|
| Status Led | supply on and teaching 1 LED green) || stability 1 LED red) || output state and alignment aid 1 LED yellow) |
| Lens Material | PMMA |
| Net Weight | 0.18 kg |
| Maximum Delay Recovery | 0.4 ms |
| Supply Voltage Limits | 10-30 V DC |
| Enclosure Material | PBT |
| Maximum Power Consumption In W | 1 W |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
Environment
| Product Certifications | CE || UL || CSA |
|---|---|
| Vibration Resistance | 7 gn +/- 0.75 mm 10-55 Hz) IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Ambient Air Temperature For Operation | -10-45 °C |
|---|---|
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Ip Degree Of Protection | IP67 IEC 60529 double insulation) |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP111230EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Circularity Profile | ENVEOLI111208EN |
