Schneider Electric XB5AS84455 Emergency stop switching off, Harmony XB5, plastic, red mushroom 40mm, 22mm, trigger turn to release, 1 NO+1 NC, push in

  • MPN: XB5AS84455
  • PPN: SCH-XB5AS84455

CAD

$102.51

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

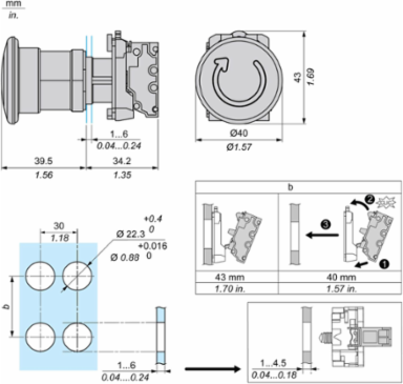

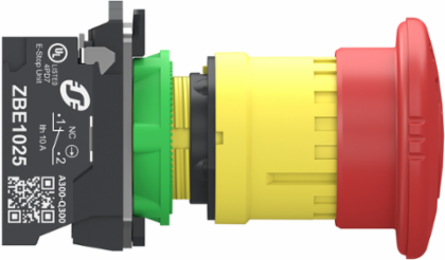

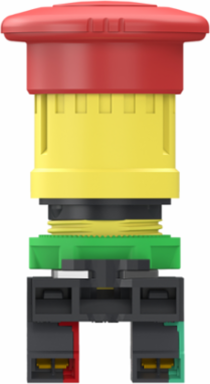

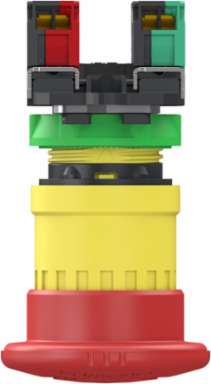

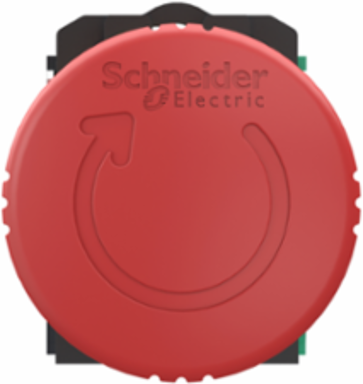

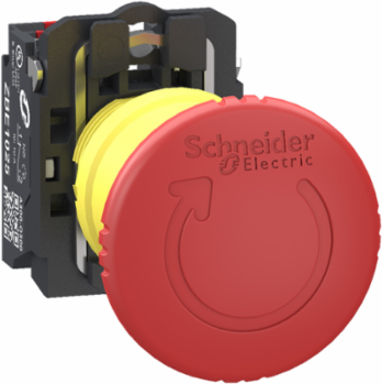

This Harmony XB5 emergency stop/shutdown 40mm mushroom head red push button operates with a turn to release mechanism. It is also called EMS (Emergency Machine Stop) and EMO (Emergency Off). It features 1 NO and 1 NC contacts with slow break operation. It is clearly distinguishable visually at a distance thanks to its illuminated head. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with push-in terminal connections. It provides a secure manner for authorized staff to switch between process or machine operating modes. This product is made from plastic, it weighs 64g. It is impact-resistant, dust-resistant, water and vibration-resistant thanks to its IP66, IP67, IP69, and IP69K ratings, making it ideal for operation in harsh environments. Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
France
Depth73.2 mm

Physical Attributes

Cap Operator Or Lens Color
red

Complementary Attributes

Ie Rated Operational Current
6 A 120 V, AC-15, A300 IEC 60947-5-1, 3 A 240 V, AC-15, A300 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1
Uimp Rated Impulse Withstand Voltage
4 kV IEC 60947-1
Ui Rated Insulation Voltage300 V 3)IEC 60947-1

Important Information Attributes

Persona Type Ids
BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Customizable
0, no
Operating Travel
1.217 mm NC changing electrical state), 2.05 mm NO changing electrical state), 4.3 mm total travel)
Shock Resistance
25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance
5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
Ie Rated Operational Current
6 A 120 V, AC-15, A300 IEC 60947-5-1, 3 A 240 V, AC-15, A300 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1
Carbon Footprint Of The End Of Life Phase C1 To C4
0.1 kg CO2 eq., 0.11300855242318657
Carbon Footprint Of The Manufacturing Phase A1 To A3
0.5 kg CO2 eq., 0.5162470700031675
Certificate Agency
EAC, IECEE CB Scheme, CCC, UL, CSA
Local Publishable Date
2026-01-12
Stocking Flag
Y
Weee Scope
Out
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI2308012EN
Reach Full Compliance Status
Free of Substances of Very High Concern above the threshold
Reach Compliance Directive
Free of Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant
Rohs Eur Full Compliance Status
Compliant
China Rohs Label
1
Without Single Use Plastic
No
Tier Id
2
Function Option Id
STANDARD
Product Kit Identifier
N
Compatibility Code
XB5
Contacts Material
silver alloy (Ag/Ni)
Device Short Name
XB5
Head Type
standard
Mounting Diameter
22.5 mm
Overvoltage Category
class II conforming to IEC 60536
Product Availability
Non-Stock - Not normally stocked in distribution facility
Protective Treatment
TH
Reset
turn to release
Returnability
Yes
Shape Of Signaling Unit Head
round
Software Version
v5.9.4
Total Lifecycle Carbon Footprint
0.7 kg CO2 eq.
Cap Operator Or Lens Color
red
Ith Conventional Free Air Thermal Current
10 A IEC 60947-5-1
Pep Code
ENVPEP2308012_V1
Pep Verification Date
2023-10-30
Psr Version
PSR-0005-ed2-2016 03 29
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime, In Y
10
Energy Model - Installation [A5]
Electricity Mix; Production mix; Low voltage; APAC
Energy Model - End Of Life [C1-c4]
Electricity Mix; Production mix; Low voltage; APAC
Height Nominal
43 mm
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
1.319
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
0.2466
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
0.2466
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Operating Force2.25 N, 2.45 N
Product Or Component Typeemergency stop push-button, emergency switching off push-button

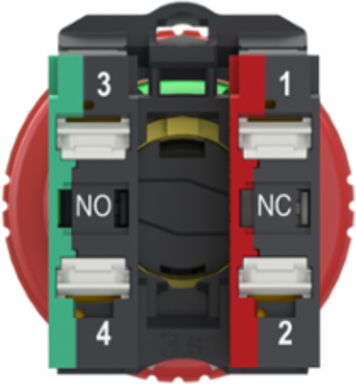

Terminals Description Iso N 1(11-12)NC, (13-14)NO, (11-12)NC, (13-14)NO
Connections Terminalspush-in, <= 2 x 1.5 mm² with wire end ferrule IEC 60947-1, push-in, >= 1 x 0.34 mm² without wire end ferrule IEC 60947-1
Carbon Footprint Of The Distribution Phase A40.008369059233449477, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.02232397846056382, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60.1 kg CO2 eq., 0.060358
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Bezel Materialdark grey plastic
Contact Operationslow-break
Contacts Usagestandard contacts
Fixing Collar Materialplastic
Mechanical Durability10000000 cycles
Operator Profilered mushroom Ø 40 mm, unmarked
Positive Openingwith IEC 60947-5-1 appendix K
Product Repair IndexA
Range Of ProductHarmony XB5
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Short Circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Sustainable PackagingNo
Type Of Operatortrigger action and mechanical latching
Product Repair Index Dam Document IdXB4BS8442-ENVREPAIR-A-EN
Warranty In Months18
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionXB5 emergency stop mushroom head modular pushbutton operates with a latched-turn-to-release mechanism. It has a plastic bezel and it is supplied with a red mushroom diameter 40 mm unmarked. It is easily installed into a standard 22mm diameter panel cut-out. Product meets the international standards such as IEC 60947-1 and IEC 60204 -1.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; APAC
Recyclability Potential, In %21
Width Nominal40 mm
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1.5656
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1.319

Environment Attributes Main

Ambient Air Temperature For Operation
-40-70 °C, -40-70 °C
Ip Degree Of Protection
IP66 IEC 60529, IP67, IP69, IP69K
Take Back
No
Recycled Metal Content At Cr Level
0 %
Toxic Heavy Metal Free
Yes
Carbon Footprint
0.7203066601203673
Environmental Disclosure
ENVPEP2308012_V1
Packaging Made With Recycled Cardboard
No
Reach Free Of Svhc
Yes
Pep Code
ENVPEP2308012_V1
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2308012EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-10-30
Psr VersionPSR-0005-ed2-2016 03 29

General Attributes

Product Or Component Type
emergency stop push-button, emergency switching off push-button
Range Of ProductHarmony XB5

ETIM

ETIM 8
EC002034
ETIM 9EC002034

Overview Attributes

Device Presentation
