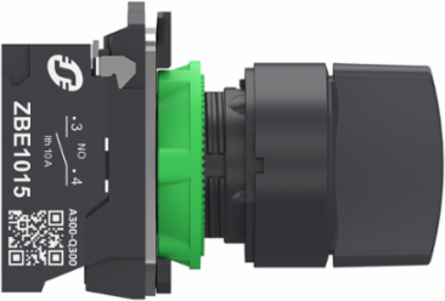

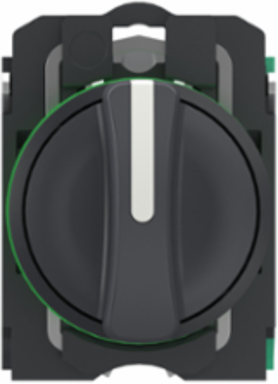

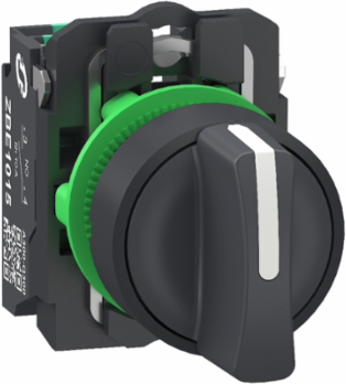

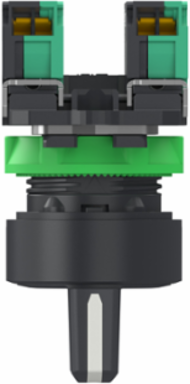

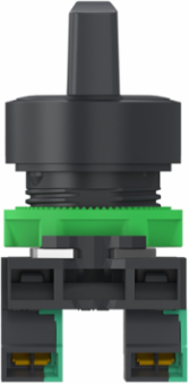

Schneider Electric XB5AD335 Selector switch, Harmony XB5, grey plastic, black, 22mm, 3 positions, stay put, 2 NO, compact push in terminals
Schneider Electric XB5AD335 Selector switch, Harmony XB5, grey plastic, black, 22mm, 3 positions, stay put, 2 NO, compact push in terminals
- MPN: XB5AD335
- PPN: SCH-XB5AD335
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$54.68/ EA
Description
This Harmony XB5 modular black selector switch has 3 positions and operates with a stay-put mechanism. This plastic selector switch provides an ergonomic interface for controlling your machines. It is supplied with a standard handle and weighs 51g. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact-resistant, dust-resistant, water-resistant, and vibration-resistant thanks to its IP66, IP67, IP69, and IP69K ratings, making it ideal for operation in harsh environments. This selector switch is equipped with 2 normally open (NO) contacts, featuring a slow break operation. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with push-in terminal connections. Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.
Specifications
Physical Attributes
- Cap Operator Or Lens Color
- black
Complementary Attributes
- Ie Rated Operational Current
- 6 A 120 V, AC-15, A300 IEC 60947-5-1, 3 A 240 V, AC-15, A300 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1
- Uimp Rated Impulse Withstand Voltage
- 4 kV IEC 60947-1
Ui Rated Insulation Voltage300 V 3)IEC 60947-1
Us Rated Supply Voltage230...240 V
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- no, 0

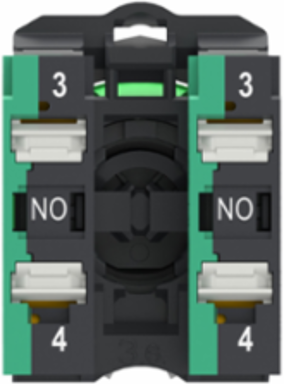

- Terminals Description Iso N 1
- (13-14)NO, (13-14)NO
- Connections Terminals
- push-in, <= 2 x 1.5 mm² with wire end ferrule IEC 60947-1, push-in, >= 1 x 0.34 mm² without wire end ferrule IEC 60947-1
- Carbon Footprint Of The Distribution Phase A4
- 0.0070613217, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0 kg CO2 eq., 0.0183888712
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0.2 kg CO2 eq., 0.16148
- Local Data Status
- Publishable
- Pre Comm Date
- 2024-05-23
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308008EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Bezel Material
- dark grey plastic
- Contact Operation
- slow-break
- Contacts Type And Composition
- 2 NO
- Device Short Name
- XB5
- Head Type
- standard
- Mounting Diameter
- 22.5 mm
- Operator Profile
- black standard handle
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- TH
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity
- 1
- Short Circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 0.6 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ith Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- Pep Code
- ENVPEP2308008EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Quantity
- 1
- Reference Lifetime In Y2
- 10
- Energy Model Installation A5 2
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
- Offer Owner Code
- 190786

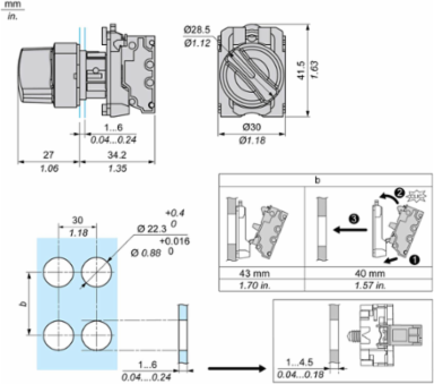

- Height Nominal
- 42 mm
- Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 2
- 2.9446
- Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2
- 2.9446
- Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2
- 2.9446
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Shock Resistance25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
Ie Rated Operational Current6 A 120 V, AC-15, A300 IEC 60947-5-1, 3 A 240 V, AC-15, A300 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1
Carbon Footprint Of The End Of Life Phase C1 To C40.094859665, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A30.4 kg CO2 eq., 0.367716153
Certificate AgencyEAC, IECEE CB Scheme, CCC, UL, CSA
Local Publishable Date2026-01-12
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility CodeXB5
Contacts Materialsilver alloy (Ag/Ni)
Contacts Usagestandard contacts
Electrical Shock Protection Classclass II conforming to IEC 60536
Mechanical Durability1000000 cycles
Operator Position Information3 positions +/- 45°
Positive Openingwithout
Product Or Component Typeselector switch
Range Of ProductHarmony XB5
ReturnabilityYes
Shape Of Signaling Unit Headround
Software Versionv5.9.4
Torque Value0.14 N.m NO changing electrical state
Type Of Operatorstay put
Cap Operator Or Lens Colorblack
Warranty In Months18
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionThis switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.002 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
Functional Unit UnitUnit
Energy Model Manufacturing A1 A3 2Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Energy Model Use B6 2Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Recyclability Potential In 223
Pn1
Width Nominal30 mm
Ecotoxicity Fresh Water Ctue Operational Energy Use B6 22.4682
Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 23.3586
Environment Attributes Main
- Ip Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.649506011
- Ambient Air Temperature For Storage
- -40-70 °C
- Environmental Disclosure
- ENVPEP2308008EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2308008EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Nema Degree Of ProtectionNEMA 13, NEMA 4X, UL type 4X/13
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Ambient Air Temperature For Operation-40-70 °C
Circularity ProfileENVEOLI2308008EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- selector switch
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC001029
ETIM 9EC001029
Specifications
- Country of Origin
- France
Depth61.2 mm
Overview Attributes
- Device Presentation
- complete product
