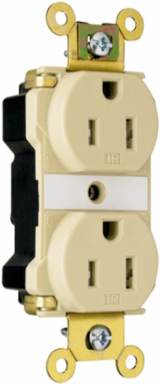

Pass & Seymour PTTR62I PlugTail® Industrial Extra Heavy Duty Spec Grade Tamper-Resistant Receptacles, 15A, 125V, Ivory
Pass & Seymour PTTR62I PlugTail® Industrial Extra Heavy Duty Spec Grade Tamper-Resistant Receptacles, 15A, 125V, Ivory
- MPN: PTTR62I
- UPC: 785007860245
- PPN: P-S-PTTR62I
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$42.30/ EA
Description
PlugTail® Industrial Extra Heavy Duty Spec Grade Tamper-Resistant Receptacles, 15A, 125V, Ivory
Features
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- Extra heavy-duty 0.050'' thick brass mounting strap for superior performance and durability.
- No exposed terminals create a finger safe application before, during, and after installation.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- Crimped and welded contacts.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
- Large brass contacts snugly terminate on device blade terminals.
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Specifications
Specifications
- Depth
- 0.866 in
- Height
- 2.75 in
- Width
- 1.625 in
- Standard
- UL 498
- Standard
- FEDSPEC
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Number of Receptacles
- 2.0
- Outlet Type
- Tamper-Resistant
- Connection Location
- Back Only
- NEMA Configuration Code
- 5-15R
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Color
- Ivory
- Special Features
- Dual mechanical shutter system, plated steel wrap, built in connector, crimped & welded contacts
PhaseThree
Amperage15.0 A
Country of OriginUnited States
Voltage125.0 V
Number of Wires3.0
Wire Size14 - 10 AWG
Is Tamper-ResistantYes
Number of PolesDouble Pole
Application SectorCommercial
FeaturesBrass Mounting Strap
Wire Connection TypePlugTail
Operating Temperature Max60.0 °C
Operating Temperature-40°-60°C
Product LinePass & Seymour
