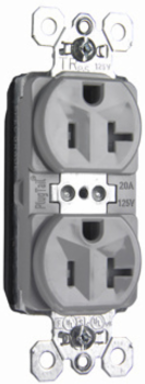

Pass & Seymour PTTR5362GRY Plugin 20A 125V Tamper-Resistant Duplex Receptacle, Gray, 2.75 Inch Height
Pass & Seymour PTTR5362GRY Plugin 20A 125V Tamper-Resistant Duplex Receptacle, Gray, 2.75 Inch Height
- MPN: PTTR5362GRY
- UPC: 785007008487
- PPN: P-S-PTTR5362GRY
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$29.49/ EA
Description
PlugTail® Tamper-Resistant Spec Grade Receptacles, 20A, 125VPlugTail® devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.
Features
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- Smooth wall plate.
- No exposed terminals create a finger safe application before, during, and after installation.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
- Crimped and welded contacts.
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
- Pre-wired with one welded pre-stripped wire lead to facilitate switched receptacle circuit applications.
- Auto-ground clip assures positive ground.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
- PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6"" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
Specifications
Specifications
- Depth
- 0.625 in
- Amperage
- 20.0 A
- Voltage
- 125.0 V
- Country of Origin
- Mexico
- Standard
- cULus UL498
- Wire Size
- 14 - 10 AWG
- Is Tamper-Resistant
- Yes
- Outlet Type
- Straight Blade
- Outlet Type
- Tamper-Resistant
- Connection Location
- Back Only
- Wire Connection Type
- PlugTail
- Operating Temperature Max
- 60.0 °C
- Finish
- Matte
- Operating Temperature Min
- -40.0 °C
- Dielectric Strength
- Withstands 2000V minimum
Height2.75 in
Width1.5 in
StandardFEDSPEC
Number of Wires3.0
Indoor/OutdoorIndoor
Wall Plate IncludedNo
Number of Receptacles2.0
Number of PolesDouble Pole
Application SectorCommercial
NEMA Configuration Code5-20R
Warranty Type1-Year Limited Warranty
ColorGray
Product LinePass & Seymour
Operating Temperature-40°-60°C
FeaturesSingle Piece Plated Steel Mounting Strap
