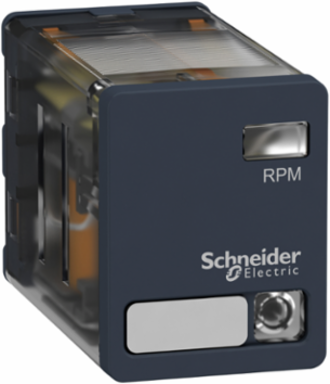

Schneider Electric RPM23B7 Harmony Electromechanical Relay 15A 2CO 24V AC with LED
- MPN: RPM23B7
- PPN: SCH-RPM23B7
CAD
$22.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This product is part of the Harmony Electromechanical Relays range, an offer of interface, miniature and power electromechanical relays. The power plug-in relay has 2 changeover contact with 15A at 250V AC and 15A at 28V DC resistive load current. It is a power relay with a control circuit voltage of 24V AC at 50/60Hz. This plug-in relay comes with status LED and flat plug-in pin. It offers electrical durability of about 1,00,000 cycles for resistive load and mechanical durability of about 10 million cycles. Its dimensions are 21mm (width) x 27mm (height) x 39mm (depth). It weighs 0.036kg. It is suitable for industrial, automation and control applications. This product is certified by EAC, CSA and UL. It meets CSA C22.2 No 14, UL 508 and EN/IEC 61810-1 standards. The Harmony electromechanical relay features flexible add-on accessories like protection module, timing module, maintaining clamp and marking legend. The Harmony electromechanical relay includes interface, miniature and power relays from 1 CO to 4 CO contacts, up to 30A.
Documentation & Downloads
Specifications
Key Specifications
- Utilisation Coefficient
- 20 %
- Range Of Product
- Harmony Electromechanical Relays
- Status Led
- with
- Series Name
- Power
- Device Short Name
- RPM
[Uc] Control Circuit Voltage24 V AC 50/60 Hz
Product Or Component Typeplug-in relay
Control Typewithout lockable test button
Contacts Type And Composition2 C/O
[Ithe] Conventional Enclosed Thermal Current15 A -40-55 °C
Complementary
- Maximum Switching Capacity
- 3750 VA || 420 W
- Height
- 27 mm
- Protection Category
- RT I
- Electrical Durability
- 100000 cycles resistive
- Average Coil Consumption In Va
- 1.1 60 Hz
- Reset Time
- 20 ms at nominal voltage
- Maximum Switching Voltage
- 250 V IEC
- Device Presentation
- complete product
- Pollution Degree
- 3
- [Ui] Rated Insulation Voltage
- 250 V IEC || 300 V CSA || 300 V UL
- Operating Position
- any position
- Width
- 21 mm
- Drop-Out Voltage Threshold
- >= 0.15 Uc AC
- Depth
- 39 mm
Safety Reliability DataB10d = 100000
Operating Rate<= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
Test Levelslevel A group mounting
Contacts MaterialAgNi
Shape Of Pinflat
Net Weight0.036 kg
Average Resistance177 Ohm 20 °C +/- 15 %
Rated Operational Voltage Limits19.2...26.4 V AC
[Ie] Rated Operational Current15 A 277 V AC) UL || 15 A 28 V DC) UL || 15 A 250 V AC) NO IEC || 15 A 28 V DC) NO IEC || 7.5 A 250 V AC) NC IEC || 7.5 A 28 V DC) NC IEC
Mechanical Durability10000000 cycles
Operating Time20 ms at nominal voltage
Load Current15 A 250 V AC || 15 A 28 V DC
[Uimp] Rated Impulse Withstand Voltage4 kV 1.2/50 µs
Minimum Switching Capacity170 mW 10 mA, 17 V
Environment
- Product Certifications
- EAC || CSA || UL
- Ambient Air Temperature For Operation
- -40-55 °C
- Vibration Resistance
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Ip Degree Of Protection
- IP40 EN/IEC 60529
StandardsCSA C22.2 No 14 || UL 508 || EN/IEC 61810-1
Dielectric Strength1500 V AC between contacts micro disconnection || 2000 V AC between coil and contact reinforced || 2000 V AC between poles basic
Shock Resistance15 gnin operation || 30 gnnot operating
Ambient Air Temperature For Storage-40-85 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Environmental DisclosureENVPEP1406038EN
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
