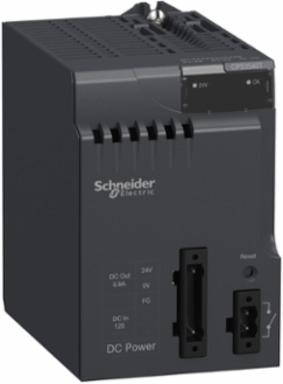

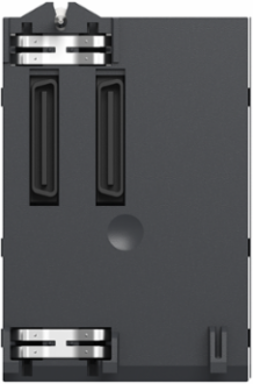

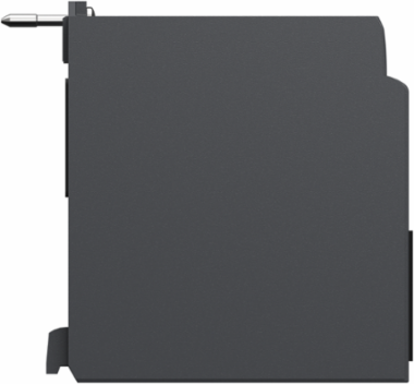

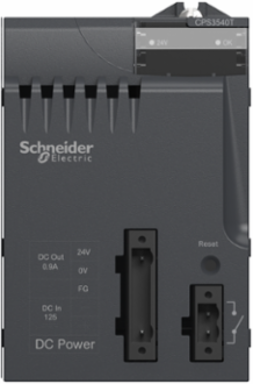

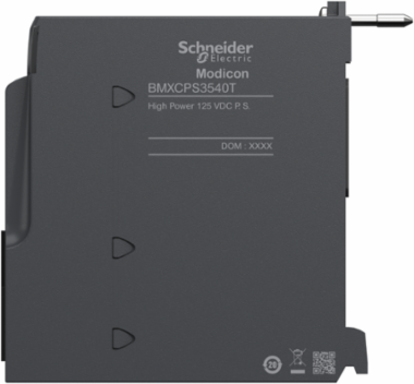

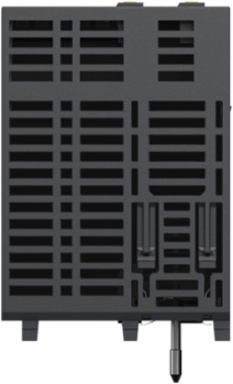

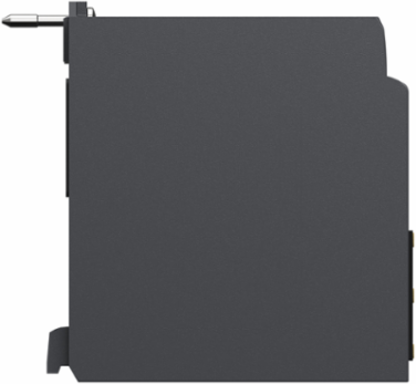

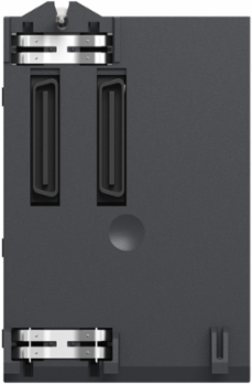

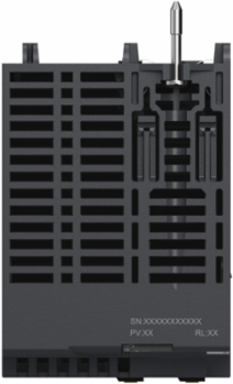

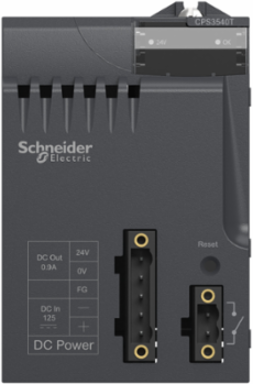

Schneider Electric BMXCPS3540T Modicon X80 Power Supply Module 125V DC, 31.2W, IP20, -25-70 C
- MPN: BMXCPS3540T
- PPN: SCH-BMXCPS3540T
CAD
$1919.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has a voltage of 125V DC for extended temperature. It is a power supply module with a secondary power of 31.2W at 24V DC, a current at secondary voltage of 4.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth, 24V DC input sensor for electrical connection. It is an IP20 rated product. It weighs 0.36kg. It is suitable for medium to large process applications. This product is certified by ATEX, IEC-Ex, CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, United States
Complementary Attributes
- Maximum Power Dissipation In W
- 8.5 W
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Current At Secondary Voltage
- 1.3 A 24 V DC I/O module power supply and processor, 4.5 A 3.3 V DC I/O module logic power supply
- Electrical Connection
- 1 connector 2 alarm relay, 1 connector 5 line supply, protective earth, 24 V DC input sensor
- Insulation Resistance
- >= 100 MOhm primary/ground, >= 100 MOhm primary/ground, >= 100 MOhm primary/secondary, >= 100 MOhm primary/secondary>= 100 MOhm primary/ground, >= 100 MOhm primary/ground, >= 100 MOhm primary/secondary
- Secondary Power
- 15 W 3.3 V DC I/O module logic power supply, 31.2 W 24 V DC I/O module power supply and processor
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0627673469387755, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.2335248979591836, 0.2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 451 kg CO2 eq., 450.6399999999999
- Local Publishable Date
- 2026-04-04
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Immunity To Microbreaks
- 1 ms
- It On Activation
- 0.05 A.s 125 V
- Primary Voltage
- 125 V
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Specific Application
- extended temperature
- Range Of Product
- Modicon X80
- Shock Resistance
- 30 gn
- Supply Circuit Type
- DC
- Total Lifecycle Carbon Footprint
- 457 kg CO2 eq.
- Pep Code
- ENVPEP2402022EN
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; CN
- Recyclability Potential, In %
- 1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Acidification (Ap) (Mole Of H+ Equiv) Operational Energy Use [B6]
- 3.0466
- Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 206.49
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 1067.1
- Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 1067.1
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Dielectric Strength2000 V primary/secondary I/O module logic power supply, 500 V 24 V sensor output/ground
Environmental Characteristicgas resistant class Gx, gas resistant class 3C4, dust resistant class 3S4, sand resistant class 3S4, salt resistant level 2, mold growth resistant class 3B2, fungal spore resistant class 3B2
Protection Typeinternal fuse not accessible primary circuit, overload protection secondary circuit, 24 V sensor power supply, overvoltage protection secondary circuit, 24 V sensor power supply, short-circuit protection secondary circuit, 24 V sensor power supply
Status Led1 LED (Green) rack voltage OK, 1 LED (Green) sensor voltage
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.7 kg CO2 eq., 0.6648195918367347
Carbon Footprint Of The Manufacturing Phase [A1 To A3]6 kg CO2 eq., 5.569665306122449
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2402022EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1940
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationIndustrial
Control TypeRESET push-button cold restart
Inrush Current30 A 125 V
Mtbf Reliability4400000 H
Primary Voltage Limit100...150 V
Product Or Component Typepower supply module
Protective Treatmentconformal coating
ReturnabilityYes
Software Versionv5.9.4
Sustainable PackagingYes
Vibration Resistance3 gn
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe power supply provides power to the modules on a M340 or M580 rack (main or drop) with a primary voltage of 100V to 240V AC , a secondary power of 31.2W at 24V DC and a maximum power dissipation of 8.5W.
Functional-unit UnitUnit
Energy Consumption On Product Lifetime, In Kwh670.14
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; CN
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; CN
I²T On Activation2 A².s 125 V
Package Weight(Lbs)534.000 g
Warranty (In Months)18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]5.6784
Photochemical Ozone Formation (Kg Of Nmvoc Equiv) Operational Energy Use [B6]1.1076
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]5.6784
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 457.170777142857
- Environmental Disclosure
- ENVPEP2402022EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2402022EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Operating Altitude0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2402022EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Product Compatibilitynot compatible with BMEXBP..02
Relative Humidity5-95 % 55-55 °C without condensation
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- power supply module
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC000599
ETIM 9EC000599
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Current
- 350 mA 125 V
Accessories
