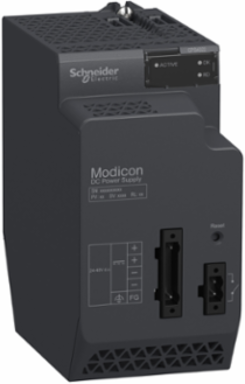

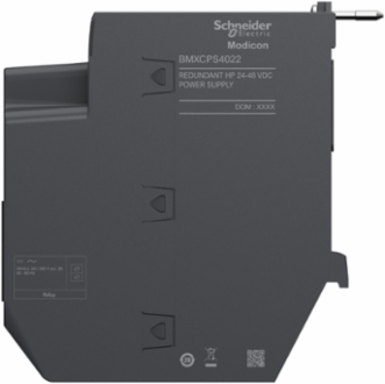

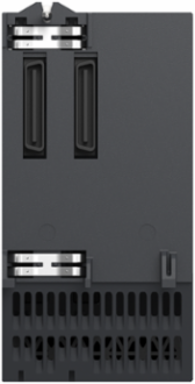

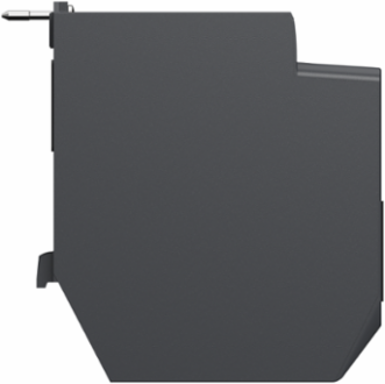

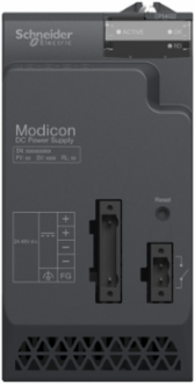

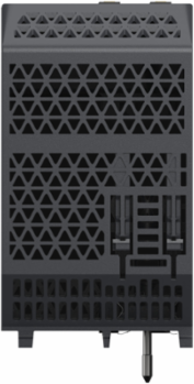

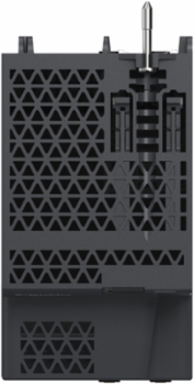

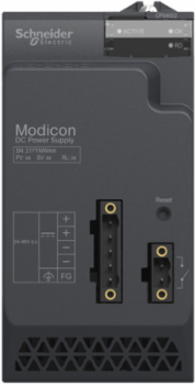

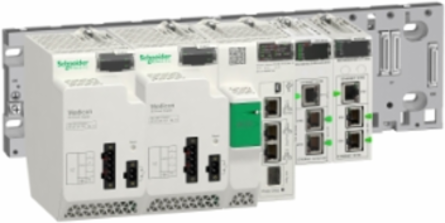

Schneider Electric BMXCPS4022 Redundant Power Supply Module, Modicon X80, 24-48V DC, 40W Output, IP20
- MPN: BMXCPS4022
- PPN: SCH-BMXCPS4022
CAD
$2097.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This redundant power supply module has a primary voltage of 24V to 48V DC. It is a power supply module with a secondary power of 40W at 24V DC, a current at secondary voltage of 5.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. Advanced diagnostics available via networks are temperature sensing, redundancy test, uptime duration, redundancy information and remaining lifetime. It is an IP20 rated product. It weighs 0.81kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with all backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Indonesia, United States
Complementary Attributes
- Maximum Cable Distance Between Devices
- 10 m, 15 m
Maximum Power Dissipation In W8.5 W
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Current At Secondary Voltage
- 5.5 A 3.3 V DC I/O module logic power supply, 1.67 A 24 V DC I/O module power supply and processor
- Electrical Connection
- 1 connector 2 alarm relay, 1 connector 5 line supply, protective earth
- Function Available
- redundancy information, redundancy test, temperature sensing, remaining lifetime, uptime duration
- Insulation Resistance
- >= 100 MOhm primary/ground, >= 100 MOhm primary/ground, >= 100 MOhm primary/secondary, >= 100 MOhm primary/secondary>= 100 MOhm primary/ground, >= 100 MOhm primary/ground, >= 100 MOhm primary/secondary
- Protection Type
- internal fuse not accessible primary circuit, overload protection secondary circuit, overvoltage protection secondary circuit, short-circuit protection secondary circuit
- Status Led
- 1 LED (Green) presence of voltages (OK), 1 LED (Green) redundancy OK, 1 LED (Green) power supply status
- Carbon Footprint Of The Distribution Phase [A4]
- 0.9766307859762845, 1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.006107857076462081, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 467 kg CO2 eq., 467.2337794379028
- Local Publishable Date
- 2026-04-04
- Future Imap
- 1437.77
- Stocking Flag
- N
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Immunity To Microbreaks
- 1 ms
- Primary Voltage
- 24...48 V
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Modicon X80
- Software Version
- v6.1
- Sustainable Packaging
- Yes
- Pep Code
- ENVPEP2410045EN
- Pep Verification Date
- 2024-12-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Indonesia, ID
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; United States, US
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Dielectric Strength1500 V primary/ground, 1500 V primary/secondary
Environmental Characteristic3C3 IEC 60721-3-3, 3C4 IEC 60721-3-3
Inrush Current60 A 48 V, 60 A 24 V
It On Activation0.05 A.s 24 V, 0.08 A.s 48 V
Secondary Power18 W 3.3 V DC 0-60 °C I/O module logic power supply, 40 W 24 V DC 0-60 °C I/O module power supply and processor if 3.3 V not loaded
I²T On Activation0.4 A².s 24 V, 1.9 A².s 48 V
Carbon Footprint Of The End-of-life Phase [C1 To C4]1 kg CO2 eq., 1.4864641804804932
Carbon Footprint Of The Manufacturing Phase [A1 To A3]26 kg CO2 eq., 26.353052366133642
Local Data StatusPublishable
Return IndicatorY
Future Msrp1890.00
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2410045EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1940
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Control TypeRESET push-button cold restart
Mtbf Reliability752000 H
Primary Voltage Limit18...62.4 V
Product Or Component Typepower supply module
ReturnabilityYes
Supply Circuit TypeDC
Total Lifecycle Carbon Footprint496 kg CO2 eq.
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo provide power to a Modicon X80 controller during 10 years and at 90% use rate, in accordance with relevant safety and performance standards.To provide power to a Modicon X80 platform during 10 years with a 90% use rate, in accordance with relevant safety and performance standards.
Functional-unit UnitUnit
Energy Consumption On Product Lifetime, In Kwh670.14
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; United States, US
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; United States, US
Package Weight(Lbs)666.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 496.05603462756966
- Circularity Profile
- ENVEOLI2410045EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- all backplane
- Relative Humidity
- 10-95 % without condensation
- Pep Verification Date
- 2024-12-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation0-60 °C
Environmental DisclosureENVPEP2410045EN
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2410045EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- power supply module
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC000599
ETIM 9EC000599
Input Attributes
- Input Current
- 1.9 A 24 V, 1 A 48 V
Accessories
