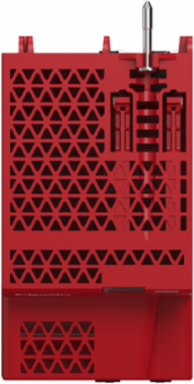

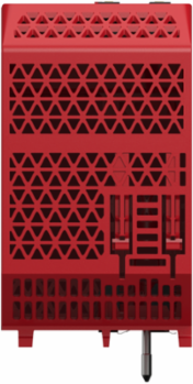

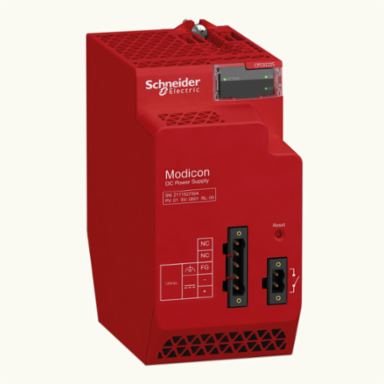

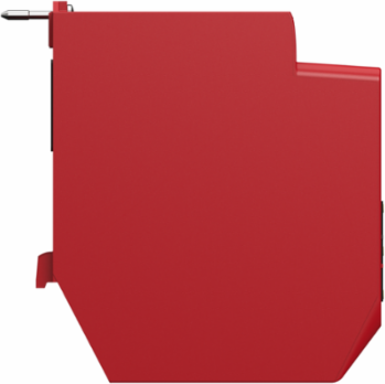

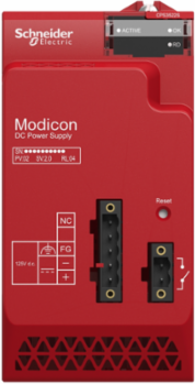

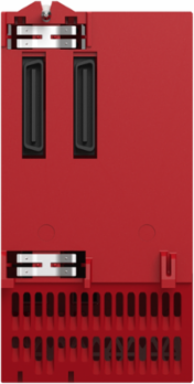

Schneider Electric BMXCPS3522S Redundant Power Supply Module 125 V DC, 1.67 A 24 V, IP20, -25-60 C Ambient

MPN: BMXCPS3522S
PPN: SCH-BMXCPS3522S
UNSPSC: 32151706

$2816.09

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Redundant Power Supply Module 125 V DC, 1.67 A 24 V, IP20, -25-60 C Ambient

Features

For redundancy
CE and UL certified
Advanced diagnostics
Compatible with all Modicon backplanes

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia

Weight	624 g

Complementary Attributes

Maximum Power Dissipation In W	8.5 W

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Current At Secondary Voltage	1.67 A 24 V DC I/O module logic power supply, 5 A 3.3 V DC I/O module power supply and processor
Environmental Characteristic	hazardous location class I division 2, gas resistant class Gx ISA S71.04gas resistant class 3C4 IEC 60721-3-3dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3
Insulation Resistance	>= 100 MOhm primary/ground, >= 100 MOhm primary/ground, >= 100 MOhm primary/secondary, >= 100 MOhm primary/secondary>= 100 MOhm primary/ground, >= 100 MOhm primary/ground, >= 100 MOhm primary/secondary
Status Led	1 LED (Green) presence of voltages (OK), 1 LED (Green) redundancy OK, 1 LED (Green) power supply status
Carbon Footprint Of The Distribution Phase A4	0.9233600158321236, 0.9 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.005774701235927786, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	467 kg CO2 eq., 467.2337794379028
Local Publishable Date	2026-07-27
Device Type	PLC System - PLC Component
Traceability	Yes
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Electrical Connection	1 connector 2 alarm relay1 connector 5 line supply, protective earth
Inrush Current	60 A 125 V
Mtbf Reliability	791000 H
Primary Voltage Limit	100...150 V
Product Or Component Type	power supply module
Range Of Product	Modicon X80
Secondary Power	18 W 3.3 V DC -25-60 °C I/O module logic power supply40 W 24 V DC -25-60 °C I/O module power supply and processor if 3.3 V not loaded
Software Version	v6.1
Sustainable Packaging	Yes
Vibration Resistance	3 gn
Data Source	extrapolated product
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Description	To provide power to a Modicon X80 controller during 10 years and at 90% use rate, in accordance with relevant safety and performance standards.To provide power to a Modicon X80 platform during 10 years with a 90% use rate, in accordance with relevant safety and performance standards.
Functional Unit Unit	Unit
Energy Consumption On Product Lifetime In Kwh	670.14

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Dielectric Strength	1500 V primary/secondary I/O module logic power supply, 1500 V primary/secondary I/O module power supply and processor2300 V primary/secondary sensor power supply, 1500 V primary/ground
Function Available	redundancy information, redundancy test, remaining lifetime, temperature sensing, uptime duration
Protection Type	internal fuse not accessible primary circuitoverload protection secondary circuit, overvoltage protection secondary circuit, short-circuit protection secondary circuit
Certificate Agency	CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22IECEx zone 2/22, TÜV
Carbon Footprint Of The End Of Life Phase C1 To C4	1 kg CO2 eq., 1.405384316090648
Carbon Footprint Of The Manufacturing Phase A1 To A3	25 kg CO2 eq., 24.915613146162716
Local Data Status	Publishable
Return Indicator	N
Serviceability	No
Field Service Division	IDIBS
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2410045EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1940
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Market Segmentation	Industrial
Control Type	RESET push-button cold restart
Immunity To Microbreaks	1 ms
It On Activation	0.09 A.s 125 V
Primary Voltage	125 V
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protective Treatment	conformal coating
Returnability	No
Shock Resistance	15 gn
Supply Circuit Type	DC
Total Lifecycle Carbon Footprint	494 kg CO2 eq.
Database Version	2023-02
I²T On Activation	2.5 A².s 125 V
Customs Code	8504409510
Packaging Weight In G	153.5
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Operation	-25-60 °C, -25-60 °C
Directives	2014/30/EU - electromagnetic compatibility, 2006/42/EC - machinery, 2014/34/EU - ATEX directive
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2410045EN
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	0...6561.68 ft (0...2000 m)2000...5000 m with derating factor
Packaging Without Single Use Plastic	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2410045EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	494.48391161722424
Environmental Disclosure	ENVPEP2410045EN
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	all backplane
Relative Humidity	5-95 % 55-55 °C without condensation
Pep Verification Date	2024-12-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
