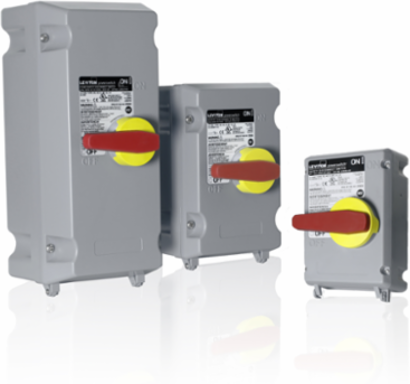

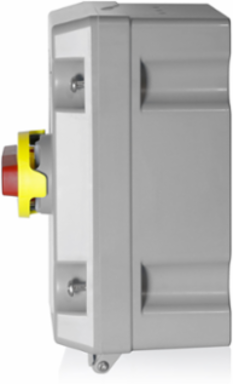

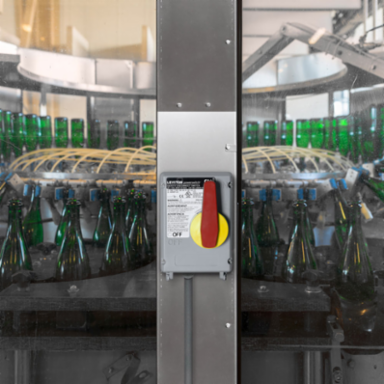

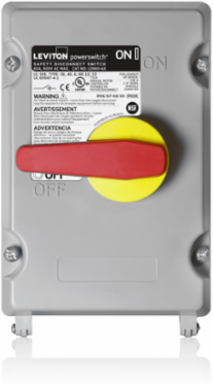

Leviton LDS60-AX 60 Amp Non-Fused Disconnect Switch, 600 Volt, PBT+PC Enclosure, UV Stabilized
- MPN: LDS60-AX
- UPC: 078477768013
- PPN: LEV-LDS60-AX
CAD
$517.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
60 Amp Non-Fused PowerSwitch Disconnect Switch, 600 Volt, Non-Metallic Enclosure
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| Amperage | 60 A |
|---|---|
| Current Interrupting | Certified for full-rated current and voltage |
| Endurance | 6,000 operating cycles at rated current and voltage |
| ISO | 20653 |
| NEMA | 250 |
| NSF | 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment |
| Voltage | 600 VAC |
| CE | CE Marked |
|---|---|
| Dielectric Voltage | 1000 V plus twice rated voltage for 1 minute |
| IEC | 60529 |
| Ingress Protection | NEMA/UL 50E Type 3R, 4, 4X, 6, 6P, 12, 13 IEC IP66, IP67, IP68, IP69 IP69K |
| NOM | NOM-ANCE |
| Short Circuit Current Rating | 100 kA; Fuse Type J; Fuse Size 100A |
| cULus | cULus UL60947-4-1A (Suitable as Motor Disconnect) |
Material Specifications
| Enclosure Material | PBT+PC |
|---|---|
| Gasket | Silicone Rubber |
| Mounting Feet | PBT+PC |
| Terminal Accom. | 14 - 4 AWG |
| Enclosure Screws | Stainless Steel |
|---|---|
| Handle Material | PBT+PC with TPE Overmold |
| Product ID | Ratings are permanently marked on device |
| Terminal ID | In accordance with UL and international conventions |
Mechanical Specifications
| CE | CE Marked |
|---|---|
| ISO | 20653 |
| NOM | NOM-ANCE |
| Product ID | Ratings are permanently marked on device |
| Terminal ID | In accordance with UL and international conventions |
| IEC | 60529 |
|---|---|
| NEMA | 250 |
| NSF | 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment |
| Terminal Accom. | 14 - 4 AWG |
| cULus | cULus UL60947-4-1A (Suitable as Motor Disconnect) |
Warranty
| Warranty | 3-Year Limited |
|---|
Environmental Specifications
| Enclosure Material | PBT+PC |
|---|---|
| Gasket | Silicone Rubber |
| Mounting Feet | PBT+PC |
| UV Resistance | Exposed materials are UV stabilized |
| Enclosure Screws | Stainless Steel |
|---|---|
| Handle Material | PBT+PC with TPE Overmold |
| Operating Temperature | -40°C to 75°C |
Electrical Specifications
| Amperage | 60 A |
|---|---|
| Dielectric Voltage | 1000 V plus twice rated voltage for 1 minute |
| Operating Temperature | -40°C to 75°C |
| UV Resistance | Exposed materials are UV stabilized |
| Current Interrupting | Certified for full-rated current and voltage |
|---|---|
| Endurance | 6,000 operating cycles at rated current and voltage |
| Short Circuit Current Rating | 100 kA; Fuse Type J; Fuse Size 100A |
| Voltage | 600 VAC |
