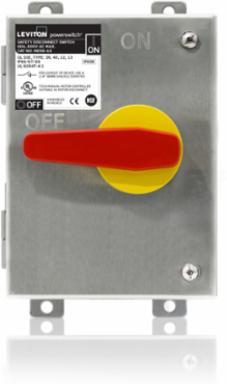

Leviton MDS6-AX 60 Amp Non-Fused Disconnect Switch, 600 Volt, Stainless Steel Enclosure
Leviton MDS6-AX 60 Amp Non-Fused Disconnect Switch, 600 Volt, Stainless Steel Enclosure
- MPN: MDS6-AX
- UPC: 078477740392
- PPN: LEV-MDS6-AX
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1062.91/ EA
Description
60 Amp Non-Fused PowerSwitch Stainless Steel Disconnect Switch, 600 Volt, Type 304 Non-Magnetic Stainless Steel Enclosure
Specifications
Standards and Certifications
- Amperage
- 60 A
- Current Interrupting
- Certified for full-rated current and voltage
- Endurance
- 6,000 cycles inductive motor type load
- ISO
- 20653
- NEMA
- 250
- NSF
- 14159-1 Hygenic Requirement for th e Design of Meat & Poultry Processing Equipment
- Voltage
- 600 VAC
CECE Marked - Low Voltage Directive (LVD) 2014/35/EU
Dielectric Voltage1000 V plus twice rated voltage for 1 minute
IEC60529
Ingress ProtectionNEMA /UL 50E Type 3R, 4X, 12, 13 • IP66, IP67, and IP68 • IP69K (per ISO 20653)
NOMNOM-ANCE
Short Circuit Current Rating100KA
cULusListed to UL 60947-4-1 (supersedes UL 508) and CSA-C22.2 no. 60947-4-1
Material Specifications
- Enclosure Material
- 16 Gauge Type 304 Stainless Steel
- Gasket
- Polyurethane Formed-In-Place-Foam Gasket (FIPFG), UL 50E Approved
- Mounting Feet
- 14 Gauge Type 304 Stainless Steel
- Terminal Accom.
- 14 - 4 AWG
Enclosure ScrewsStainless Steel
Handle MaterialBase: PBT Overmold: TPE
Product IDPart of internal and external label
Terminal IDIn accordance with UL and international conventions
Mechanical Specifications
- CE
- CE Marked - Low Voltage Directive (LVD) 2014/35/EU
- ISO
- 20653
- NOM
- NOM-ANCE
- Product ID
- Part of internal and external label
- Terminal ID
- In accordance with UL and international conventions
IEC60529
NEMA250
NSF14159-1 Hygenic Requirement for th e Design of Meat & Poultry Processing Equipment
Terminal Accom.14 - 4 AWG
cULusListed to UL 60947-4-1 (supersedes UL 508) and CSA-C22.2 no. 60947-4-1
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Warranty
- Warranty
- 3-Year Limited
Environmental Specifications
- Enclosure Material
- 16 Gauge Type 304 Stainless Steel
- Gasket
- Polyurethane Formed-In-Place-Foam Gasket (FIPFG), UL 50E Approved
- Mounting Feet
- 14 Gauge Type 304 Stainless Steel
- UV Resistance
- Exposed materials are UV stabilized
Enclosure ScrewsStainless Steel
Handle MaterialBase: PBT Overmold: TPE
Operating Temperature-40°C to 75°C
Electrical Specifications
- Amperage
- 60 A
- Dielectric Voltage
- 1000 V plus twice rated voltage for 1 minute
- Operating Temperature
- -40°C to 75°C
- UV Resistance
- Exposed materials are UV stabilized
Current InterruptingCertified for full-rated current and voltage
Endurance6,000 cycles inductive motor type load
Short Circuit Current Rating100KA
Voltage600 VAC
