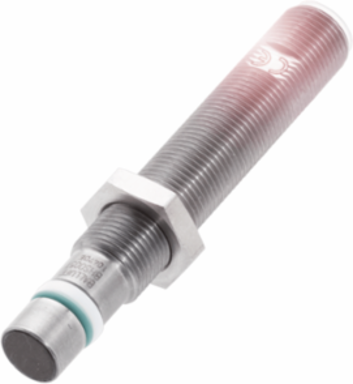

Balluff BHS B135V-PSD15-S04-T01 Pressure-rated inductive sensors BHS B135V-PSD15-S04-T01
- MPN: BHS B135V-PSD15-S04-T01
- PPN: BAL-BHS005T
CAD
$349.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Our pressure-rated inductive sensors withstand a pressure of up to 500 bar. They are, therefore, perfectly suited for position monitoring of your hydraulics, such as for end position verification of hydraulic cylinders or monitoring valve position.
Documentation & Downloads
Specifications
Key Specifications
- Dimension
- Ø 12 x 78 mm
- Installation
- for flush mounting
- Switching output
- PNP Normally open (NO)
- Housing material
- Stainless steel (1.4104)
- Connection
- Connector, M12x1-Male, 4-pin
- Ambient temperature
- -25-120 °C
- IP rating
- IP68
StyleM12x1
Range1.5 mm
Switching frequency400 Hz
Material sensing surfaceCeramic
Operating voltage Ub10-30 VDC
Pressure rating max.500 bar
Approval/ConformitycULus, CE, EAC, WEEE
