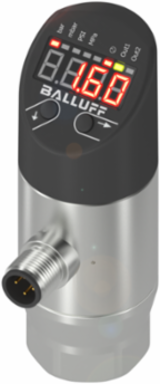

Balluff BSP B100-GV009-P00S2B-S4 Pressure Sensor, 0-100 bar, IP67, 1/4 Inch NPT, IO-Link 1.1
- MPN: BSP B100-GV009-P00S2B-S4
- PPN: BAL-BSP00Z1
CAD
$566.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Pressure Sensor, 0-100 bar, IP67, 1/4 Inch NPT, IO-Link 1.1
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 18...30 VDC |
|---|---|
| Overload Pressure | 200 bar |
| Accuracy | b10.5 % FSO BFSL |
| Analog Output | 4-20 mA / 0-10 V selectable |
| Ambient Temperature | -40...85 b0C |
| Thread Size | 1/4 in NPT |
| Material | 1.4301 stainless steel, PE (high-density polyethylene), Fluoroelastomer gasket |
| Communication Protocol | IO-Link 1.1 |
| Approval/Conformity | CE, UKCA, cULus, WEEE |
| Measuring Range | 0...100 bar |
|---|---|
| Burst Pressure | 300 bar |
| Switching Output | 2x PNP/NPN NO/NC switchable |
| Pressure Range | 0-100 bar |
| Media Temperature | -40...125 b0C |
| Connection | Connector, M12x1 Male, 4-pin |
| Ingress Protection | IP67 (when threaded in) |
| Country of Origin | Germany |
