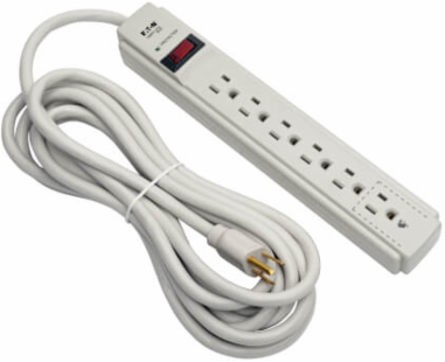

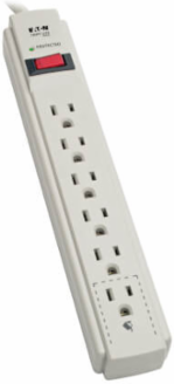

Tripp Lite TLP615 6-Outlet Surge Protector, 15 ft Cord, 790 Joules, Light Gray Housing

MPN: TLP615
UPC: 037332166418
PPN: TRP-TLP615

$63.02

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Protect It! 6-Outlet Surge Protector, 15 ft. Cord, 1200 Joules, Diagnostic LED, Light Gray Housing

Features

6-Outlet Surge Protector, Light Gray Housing
Includes owner's manual

Documentation & Downloads

Specifications

Additional

Output Receptacles	6 NEMA 5-15R
Frequency	60 Hz
Surge Protection Rating	790 Joules
AC Suppression Response Time	< 1 ns
UL Let Through Rating	500V
Overload Protection	15A resettable illuminated combo switch/circuit breaker
Power Cord Length	15 ft
Switches	Combination AC circuit breaker and 2 position red illuminated on/off power switch
Protection Modes	Full normal mode (H-N), Common mode (N-G/H-G) line surge suppression
Unit Weight	1.60 lbs
Material	Plastic
Receptacle Color	Light Gray
Keyhole Slot Mounting Measurement	101 mm center-to-center; 28 mm slot height
Input Cord Gauge Type	14 gauge; SJT
Surge Suppression Standard	Exceeds IEEE 587 Category A & B

Voltage Compatibility	120V AC (110-125V)
Circuit Breaker Amperage	15A resettable
Maximum Surge Amps	35,500
Clamping Voltage (RMS)	150V
Output (Watts)	1800
Circuit Breaker (amps)	15A

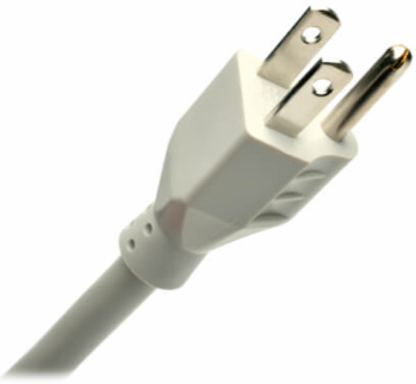

Input Plug	NEMA 5-15P
Diagnostic LED(s)	Yes, built-in protection indicator (green)
Unit Dimensions (H x W x D)	10.8 x 1.85 x 1.23 in
Automatic Shut-Off	Yes
Housing Color	Light Gray
Integrated Keyhole Mounting Slots	Yes, distance between slots 101mm center-to-center
Outlets Measurement	28.5 mm center-to-center
Certifications	UL1363, UL1449 3rd Edition, cUL
