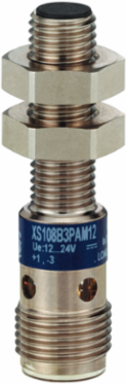

Telemecanique Sensors XS108B3PAM12 inductive sensor XS1 M8, L45mm, stainless, Sn2.5mm, 12..24VDC, M12
Telemecanique Sensors XS108B3PAM12 inductive sensor XS1 M8, L45mm, stainless, Sn2.5mm, 12..24VDC, M12
- MPN: XS108B3PAM12
- PPN: TES-XS108B3PAM12
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$127.27/ EA
Description
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, increased range, flush mountable sensor. Diameter 8mm, threaded M8 x 1. It features a nickel plated brass cylindrical short case boby and a M12 connector. It has a sensing distance of 2.5mm. Three-wire, DC supply, 12V to 24V, NO function, PNP solid-state output.
Specifications
Environment
- Product Certifications
- UL || CSA
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 ms IEC 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI1110045
Complementary
- Current Consumption
- <= 10 mA no-load
- Status Led
- output state 1 LED yellow)
- Maximum Voltage Drop
- <2 V closed)
- Marking
- CE
- Switching Frequency
- <= 2500 Hz
- Differential Travel
- 1...15% of Sr
- Maximum Delay First Up
- 10 ms
- Detection Face
- frontal
- Front Material
- PPS
Maximum Delay Response0.2 ms
Operating Zone0-2 mm
Threaded Length24 mm
Length45 mm
Thread TypeM8 x 1
Maximum Delay Recovery0.2 ms
Supply Voltage Limits10-36 V DC
Enclosure Materialstainless steel 303
Specifications
- Electrical Connection
- male connector M12, 4 pins
- Discrete Output Type
- PNP
- Type Of Output Signal
- discrete
- Sensor Name
- XS1
- Size
- 45 mm
- Ip Degree Of Protection
- IP65 IEC 60529 || IP67 IEC 60529
- Body Type
- fixed
- Sensor Type
- inductive proximity sensor
- Switching Capacity In Ma
- <= 200 mA overload and short-circuit protection
- Output Circuit Type
- DC
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Discrete Output Function1 NO
Range Of ProductTelemecanique Inductive proximity sensors XS
Materialmetal
Wiring Technique3-wire
Series Namegeneral purpose
[Sn] Nominal Sensing Distance2.5 mm
Detector Flush Mounting Acceptanceflush mountable
Sensor Designcylindrical M8
