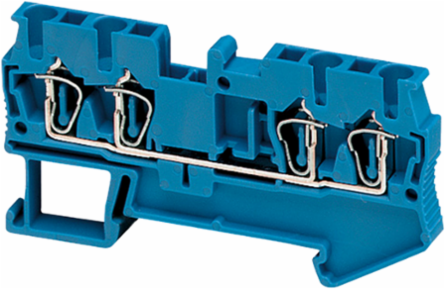

Linergy TR Terminal Block, 4 Points, 2.5 mm2, Blue, Set of 50
Schneider Electric

Schneider Electric NSYTRR24BL Linergy TR Terminal Block, 4 Points, 2.5 mm2, Blue, Set of 50

  • MPN: NSYTRR24BL
  • PPN: SCH-NSYTRR24BL
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $5.15

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Engineered for seamless electrical connections, the Schneider Electric NSYTRR24BL Linergy TR Terminal Block facilitates efficient wiring in various automation and control applications. This set of 50 terminal blocks features a robust design capable of accommodating four connection points and wire sizes of up to 2.5 mm2, ensuring reliable performance under demanding conditions. With its vibrant blue color, these terminal blocks not only enhance organization but also provide easy recognition within your wiring setups, making them a practical choice for panel builders and electricians alike.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, Germany, France

    Physical Attributes

    Color
    Blue
    Wire Stripping Length10 mm

    Complementary Attributes

    Line Rated Current
    20-20 A CSA, 20-20 A UL24-24 A EN/IEC 60947-7-1

    Important Information Attributes

    Persona Type Ids
    EU, LC, OM, OM8, PB, SI
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Cable Cross Section
    0.08-4 mm², solid without cable end0.08-2.5 mm², flexible without cable end0.08-4 mm², solid with cable end, 0.2-2.5 mm², flexible with cable end
    Dielectric Loss
    0.01 at 1 MHz IEC 60250, 0.01 at 1 MHz VDE 0303-T4
    Resistivity
    10000 MΩ.m IEC 60093, 10000 MΩ.m VDE 0303-T30
    Tool Type
    connection flat screwdriver, disconnection flat screwdriver
    [Ue] Rated Operational Voltage
    600 V CSA800 V EN/IEC 60947-7-1, 600 V UL
    Carbon Footprint Of The Distribution Phase [A4]
    0.001227897, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0 kg CO2 eq., 0.001103747
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    4 kg CO2 eq., 4.4787
    Local Publishable Date
    2026-06-27
    Stocking Flag
    Y
    Use Carbon Footprint
    4.4787
    Weee Scope
    Out
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status
    Free of Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Free of Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    Yes
    Tier Id
    2
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Connection Position
    top
    Dielectric Constant
    3.7 at 1 MHz
    Energy Efficiency Optimized
    False
    Mounting Mode
    clip-on
    Number Of Terminals
    4
    Product Name
    Linergy TR
    Quantity Per Set
    set of 50
    Range Of Product
    Linergy
    Software Version
    v5.9.4
    Terminal Block Level
    1
    Total Lifecycle Carbon Footprint
    5 kg CO2 eq.
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Functional-unit Description
    Connect during 20 years 2 clamping units between 2 or more wires with a rated connecting capacity 20.5 A, a rated cross section 2.5 mm2, a rated voltage 550 V, a Short-time withstand current 0.3 kA.
    Functional-unit Unit
    unit
    Energy Model - Manufacturing [A1-a3]
    Electricity Mix; Production mix; Low voltage; GE
    Energy Model - Use [B6]
    Electricity Mix; Production mix; Low voltage; UE-27
    Recyclability Potential In %
    37
    Length Total
    72 mm
    Accessory / Separate Part Category
    connection accessory
    Nbr. Of Units In Pkg.
    1
    Silicone-free
    Yes
    Warranty (In Months)
    18
    Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
    4.4787
    Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
    48.232
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
    136.02
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    114.1
    Customs Code
    8536904000
    Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    Market SegmentationCommercial, Industrial
    Creep Resistance500 CTI (> 400 kB) IEC 60093, 500 CTI (> 400 kB) VDE 0303-T30
    Materialpolyamide 6/6: insulating casecopper alloy: connector and screw, copper alloy: commoning linkchromium-nickel steel: spring
    Surface Resistance1000 GΩ IEC 60093, 1000 GΩ VDE 0303-T30
    Certificate AgencyVDE, CSA, DNV, UL, GL
    Connections - Terminals2 x spring terminal downstream, 2 x spring terminal upstream
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.024130211, 0 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.1 kg CO2 eq., 0.057826355
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Weee ApplicabilityComponent
    Weee Exclusion RationaleComponent not in scope – non independent function
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeYes
    Rohs Eur Conformity Date2518
    China Rohs In ScopeNo
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionStandard
    Compatibility Codeterminal block
    Device Short NameTRR
    Dielectric Strength1000 V IEC 60243-1
    Flame RetardanceV0 0.8 mm UL 94
    Nominal Cross Section2.5 mm²
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typeterminal block
    RangeLinergy
    ReturnabilityYes
    Sustainable PackagingYes
    Terminal Block Typepassthrough
    Pep CodeENVPEP2309017EN
    Pep Verification Date2023-12-03
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y20
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
    Height Nominal36.5 mm
    Width Nominal5.2 mm
    Halogen-free StatusHalogen free plastic parts product
    Package Weight(Lbs)9.000 g
    Take-backNo
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]4.4727
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]114.1
    Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]6.6592
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]21.911
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]21.911

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Take Back
    No
    Halogene Performance
    Halogen free plastic parts product
    Toxic Heavy Metal Free
    Yes
    Silicon Free
    Yes
    Environmental Disclosure
    ENVPEP2309017EN
    Halogen Content Performance
    Halogen free plastic parts product
    Packaging Without Single Use Plastic
    Yes
    Reach Free Of Svhc
    Yes
    Pep Code
    ENVPEP2309017EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Ambient Air Temperature For Operation-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21, -40-130 °C VDE 0304-T21-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21
    Reach Free ShvcYes
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Carbon Footprint4.562988211
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Product CompatibilitySpacial enclosures
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2023-12-03
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Type
    terminal block
    Range Of ProductLinergy

    ETIM

    ETIM 8
    EC000897
    ETIM 9EC000897

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Input Attributes

    Number Of Measurement Input
    2
