Linergy TR Push-In Terminal Block, 4 Points, 2.5 mm2, Set of 50
Schneider Electric

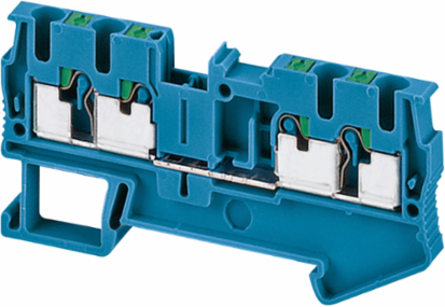

Schneider Electric NSYTRP24BL Linergy TR Push-In Terminal Block, 4 Points, 2.5 mm2, Set of 50

  • MPN: NSYTRP24BL
  • PPN: SCH-NSYTRP24BL

CAD

$5.55

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Schneider Electric's Linergy TR Push-In Terminal Block offers a robust and efficient solution for electrical connections, featuring four connection points and supporting wire sizes up to 2.5 mm2. This set of 50 terminal blocks is designed for ease of installation, utilizing a push-in design that simplifies the wiring process while ensuring reliable connectivity for automation and control applications. Ideal for panel builders and industry professionals, these accessories provide secure and dependable connections that contribute to effective electrical management in various setups.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, China, Germany, France, United States

Physical Attributes

Color
Blue
Wire Stripping Length10 mm

Complementary Attributes

Line Rated Current
24-24 A EN/IEC 60947-7-120-20 A CSA, 20-20 A UL

Important Information Attributes

Persona Type Ids
EU, LC, OM, OM8, PB, SI
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Cable Cross Section
0.14-2.5 mm², flexible without cable end0.14-4 mm², solid with cable end, 0.2-2.5 mm², solid without cable end, 0.8-2.5 mm², flexible with cable end
Dielectric Loss
0.01 at 1 MHz IEC 60250, 0.01 at 1 MHz VDE 0303-T4
Resistivity
10000 MΩ.m IEC 60093, 10000 MΩ.m VDE 0303-T30
Certificate Agency
VDE, GL, CSA, UL
Connections - Terminals
2 x push-in downstream, 2 x push-in upstream
Carbon Footprint Of The End-of-life Phase [C1 To C4]
0 kg CO2 eq., 0.023179481
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
0.1 kg CO2 eq., 0.055960457
Local Data Status
Publishable
Return Indicator
Y
Stock Policy
2
Weee Applicability
Component
Weee Exclusion Rationale
Component not in scope – non independent function
Eoli Availability Display
No need of specific recycling operations
Reach Full Compliance Status Id
NOT_CONTAINING_SVHC
Rohs Eur In Scope
Yes
Rohs Eur Conformity Date
2518
China Rohs In Scope
No
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Tier
2
Function Option
Standard
Compatibility Code
terminal block
Device Short Name
TRP
Dielectric Strength
1000 V IEC 60243-1
Flame Retardance
V0 0.8 mm UL 94
Nominal Cross Section
2.5 mm²
Product Availability
Stock - Normally stocked in distribution facility
Product Or Component Type
terminal block
Range
Linergy
Returnability
Yes
Sustainable Packaging
Yes
Terminal Block Type
passthrough
Total Lifecycle Carbon Footprint
5 kg CO2 eq.
Database Version
2022-01
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent external review
Functional-unit Description
Connect during 20 years 2 clamping units between 2 or more wires with a rated connecting capacity 19 A, a rated cross-section 2.5 mm2, a rated voltage 550 V, a short-time withstand current 0.3 kA.
Functional-unit Unit
unit
Energy Model - Manufacturing [A1-a3]
Electricity Mix; Production mix; Low voltage; GE
Energy Model - Use [B6]
Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %
33
Length Total
72 mm
Accessory / Separate Part Category
connection accessory
Nbr. Of Units In Pkg.
1
Silicone-free
Yes
Warranty (In Months)
18
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
4.4787
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
48.232
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
136.02
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
114.1
Customs Code
8536904000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Creep Resistance500 CTI (> 400 kB) IEC 60093, 500 CTI (> 400 kB) VDE 0303-T30
Materialpolyamide 6/6: insulating casecopper alloy: connector and screw, copper alloy: commoning linkchromium-nickel steel: spring
Surface Resistance1000 GΩ IEC 60093, 1000 GΩ VDE 0303-T30
[Ue] Rated Operational Voltage800 V EN/IEC 60947-7-1600 V CSA, 600 V UL
Carbon Footprint Of The Distribution Phase [A4]0.0011769, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.001062523, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]4 kg CO2 eq., 4.4787
Local Publishable Date2026-06-27
Stocking FlagN
Use Carbon Footprint4.4787
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Connection Positiontop
Dielectric Constant3.7 at 1 MHz
Energy Efficiency OptimizedFalse
Mounting Modeclip-on
Number Of Terminals4
Product NameLinergy TR
Quantity Per Setset of 50
Range Of ProductLinergy
Software Versionv5.9.4
Terminal Block Level1
Tool Typeconnection without tooldisconnection flat screwdriver
Pep CodeENVPEP2309019EN
Pep Verification Date2023-12-03
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal36.5 mm
Width Nominal5.2 mm
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)9.000 g
Take-backNo
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]4.4727
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]114.1
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]6.6592
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]21.911
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]21.911

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Take Back
No
Halogene Performance
Halogen free plastic parts product
Toxic Heavy Metal Free
Yes
Silicon Free
Yes
Environmental Disclosure
ENVPEP2309019EN
Halogen Content Performance
Halogen free plastic parts product
Packaging Without Single Use Plastic
Yes
Reach Free Of Svhc
Yes
Pep Code
ENVPEP2309019EN
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent external review
Ambient Air Temperature For Operation-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21, -40-130 °C VDE 0304-T21-40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21
Reach Free ShvcYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint4.56007936
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Product CompatibilitySpacial enclosures
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-12-03
Psr VersionPSR-0005-ed2-2016 03 29

General Attributes

Product Or Component Type
terminal block
Range Of ProductLinergy

ETIM

ETIM 8
EC000897
ETIM 9EC000897

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months

Input Attributes

Number Of Measurement Input
2
