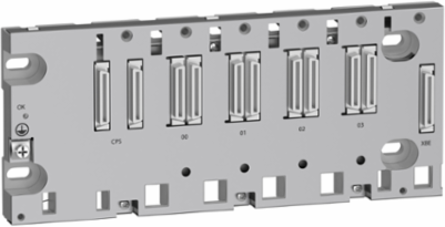

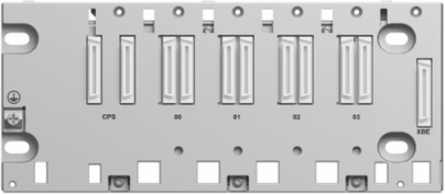

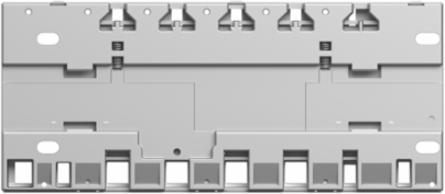

Schneider Electric BMEXBP0400H Modicon X80 Ruggedized Rack, 4 Slots, Ethernet, -25 to 70 C Operating Temp
- MPN: BMEXBP0400H
- PPN: SCH-BMEXBP0400H
CAD
$730.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered for demanding environments, the Modicon X80 Ruggedized Rack from Schneider Electric accommodates four slots and supports Ethernet connectivity for enhanced communication capabilities. Designed to operate efficiently in a wide temperature range from -25 to 70 C, this rack ensures reliable performance in tough conditions. Its robust construction is ideal for industrial applications, making it a vital component for those seeking to optimize their control systems with durability and versatility.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Indonesia, Philippines, United States
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Environmental Characteristic
- gas resistant class Gx ISA S71.04gas resistant class 3C4 IEC 60721-3-3dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3hazardous location class I division 2
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0939559091, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0069405398, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 143 kg CO2 eq., 142.9143536232
- Local Publishable Date
- 2026-02-19
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Electrical Connection
- 1 connector (XBE) expansion module
- Mtbf Reliability
- 1588025 H
- Power Consumption In W
- 162 mW 3.3 V DC2.8 W 24 V DC
- Product Specific Application
- for severe environments
- Range Of Product
- Modicon X80
- Software Version
- EIME v5.9.3
- Total Lifecycle Carbon Footprint
- 150 kg CO2 eq.
- Database Version
- 2020-12
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 15
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536908585
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Certificate AgencyCE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22IECEx zone 2/22
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.2659176705
Carbon Footprint Of The Manufacturing Phase [A1 To A3]7 kg CO2 eq., 6.9398636364
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2203018EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2007
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationIndustrial
Current Consumption49 mA 3.3 V DC118 mA 24 V DC
Fixing Modeby 4 screws 4.32-6.35 mm panelby 4 M6 screws plateby clips 35 mm symmetrical DIN rail
Number Of Slots4 bus X + Ethernet
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective Treatmentconformal coating
ReturnabilityNo
Sustainable PackagingNo
Pep CodeENVPEP2203018EN
Pep Verification Date2022-04-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionX80 Racks are used to install modules in a PLC station (power supply, processor, discrete, analog, and application-specific I/O) during 15 years with a 100% use rate.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Energy model used: France
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
Accessory / Separate Part Typeruggedized rack
Package Weight(Lbs)725.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Product Compatibility
- BMXCPS power supply, I/O module, specific application module, BMX processor, BME processor
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2203018EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2203018EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
Take BackNo
China Rohs RegulationX
Carbon Footprint150.2210313789
Environmental DisclosureENVPEP2203018EN
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Relative Humidity5-95 % without condensation
Pep Verification Date2022-04-01
Type Of Verification For The PepIndependent internal review
General Attributes
- Range Of Product
- Modicon X80
ETIM
- ETIM 8
- EC000810
ETIM 9EC000810
