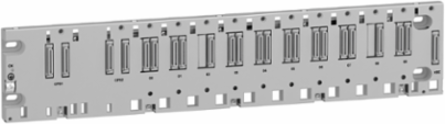

Schneider Electric BMEXBP1002H Modicon X80 Rack 10 Slot, Redundant PS, Ruggedized, IP20

MPN: BMEXBP1002H
PPN: SCH-BMEXBP1002H

$1929.32

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Modicon X80 Rack from Schneider Electric represents a robust and efficient solution for automation and control systems. Designed with a capacity of 10 slots, this ruggedized rack features a redundant power supply, ensuring reliability and continuous operation in demanding environments. Its IP20 rating indicates a design that effectively protects against dust and solid objects, making it suitable for a variety of industrial applications. This system is an integral part of PLC, HMI, and data acquisition setups, offering versatility and dependable performance for your automation needs.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Environmental Characteristic	gas resistant class Gx ISA S71.04gas resistant class 3C4 IEC 60721-3-3dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3hazardous location class I division 2
Certificate Agency	CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22IECEx zone 2/22
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.5 kg CO2 eq., 0.5087444508
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	13 kg CO2 eq., 13.2771060606
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	IDIBS
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2203018EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2007
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Market Segmentation	Industrial
Current Consumption	162 mA 24 V DC76 mA 3.3 V DC
Mtbf Reliability	1184170 H
Power Consumption In W	251 mW 3.3 V DC3.9 W 24 V DC
Product Specific Application	for severe environments
Range Of Product	Modicon X80
Software Version	EIME v5.9.3
Total Lifecycle Carbon Footprint	214 kg CO2 eq.
Database Version	2020-12
Pcr Version	PCR-ed3-EN-2015 04 02
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	15
Energy Model - Installation [A5]	Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536908585

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Fixing Mode	by 4 M6 screws plate, by 4 screws 4.32-6.35 mm panel
Carbon Footprint Of The Distribution Phase [A4]	0.1797531818, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0132783996, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	200 kg CO2 eq., 200.2827359091
Local Publishable Date	2026-06-14
Stocking Flag	N
Device Type	PLC System - PLC Component
Traceability	Yes
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Electrical Connection	1 connector (XBE) expansion module
Number Of Slots	8 bus X + Ethernet2 bus X
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	conformal coating
Returnability	Yes
Sustainable Packaging	No
Pep Code	ENVPEP2203018EN
Pep Verification Date	2022-04-01
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	X80 Racks are used to install modules in a PLC station (power supply, processor, discrete, analog, and application-specific I/O) during 15 years with a 100% use rate.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Energy model used: France
Energy Model - Use [B6]	Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
Accessory / Separate Part Type	ruggedized rack
Package Weight(Lbs)	1.369 kg
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Product Compatibility	specific application module, BMX processor, BMXCPS4002, BME processor, I/O module
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2203018EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2203018EN
Pcr Version	PCR-ed3-EN-2015 04 02

Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
Take Back	No
China Rohs Regulation	X
Carbon Footprint	214.2616180019
Environmental Disclosure	ENVPEP2203018EN
Ip Degree Of Protection	IP20
Packaging Without Single Use Plastic	Yes
Relative Humidity	5-95 % without condensation
Pep Verification Date	2022-04-01
Type Of Verification For The Pep	Independent internal review
