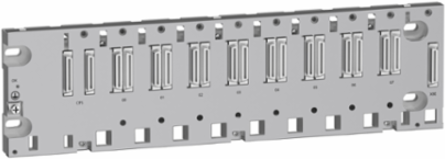

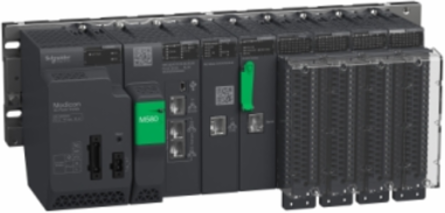

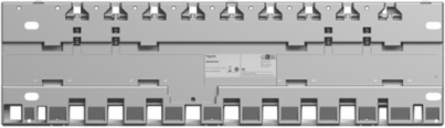

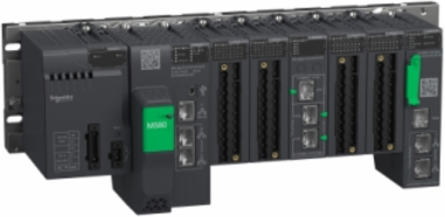

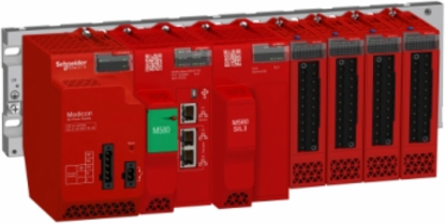

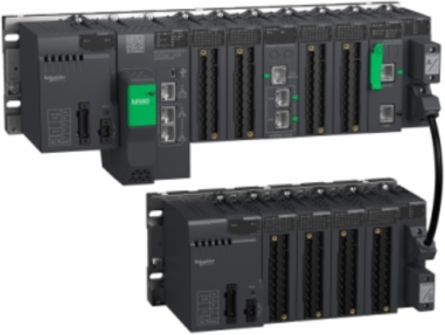

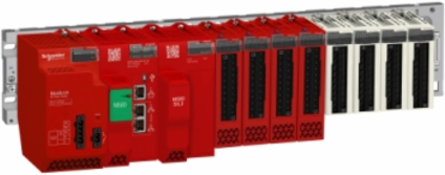

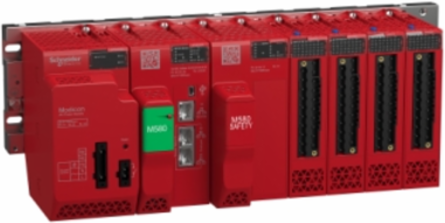

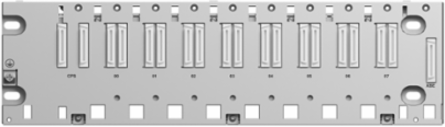

Schneider Electric BMEXBP0800 Modicon X80 8-Slot Ethernet Backplane Rack, IP20, 1.06kg

MPN: BMEXBP0800
PPN: SCH-BMEXBP0800

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$793.89

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

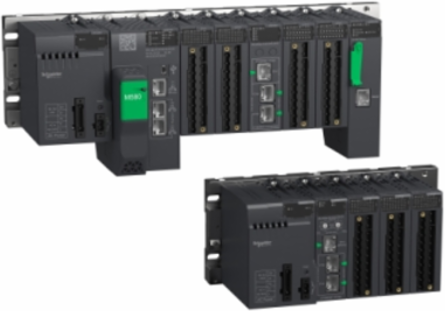

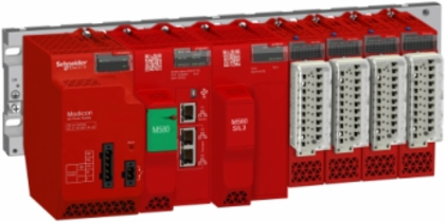

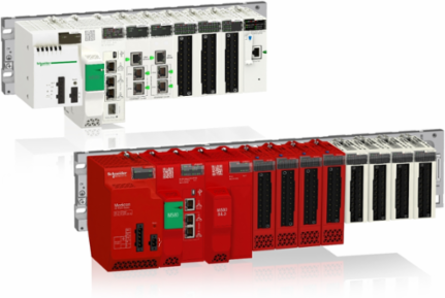

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of programmable automation controllers. This 8-slot dual Ethernet and X-bus backplane provides 8 slots with 8 Ethernet and X-bus connectors for mixed modules. This product is robust, high quality and based on the latest innovative technology. It is an Ethernet backplane rack with a current of 164mA at 24V DC and 64mA at 3.3V DC. It is furnished with 1 connector (XBE) expansion module for electrical connection. It offers 1700000 hours of MTBF. It is an IP20 rated product. It weighs 1.06kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This Ethernet backplane rack is compatible with specific application module, I/O module, BMXCPS power supply, BMX processor and BME processor. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Carbon Footprint Of The Distribution Phase [A4]	0.13896, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.010265
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	333 kg CO2 eq., 332.92
Local Publishable Date	2026-04-23
Stocking Flag	Y
Device Type	PLC System - PLC Component
Traceability	Yes
Average Life Duration	20 year(s)
Use Carbon Footprint	332.92
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Electrical Connection	1 connector (XBE) expansion module
Mtbf Reliability	1297516 H
Power Consumption In W	211 mW 3.3 V DC3.9 W 24 V DC
Range Of Product	Modicon X80
Software Version	EIME v5.9.3
Total Lifecycle Carbon Footprint	344 kg CO2 eq.
Database Version	2020-12
Pcr Version	PCR-ed3-EN-2015 04 02
Data Source	referent product
Functional-unit Quantity	1
Reference Lifetime In Y	15
Energy Model - Installation [A5]	Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
Accessory / Separate Part Type	rack
Nbr. Of Units In Pkg.	1
Take-back	No
Air Pollution (M3) Total Life Cycle	32981
Air Pollution (M3) Distribution [A4]	5.9111
Air Pollution (M3) End Of Life [C1-c4]	11.771
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]	102.18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]	0.1284
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]	1.3444
Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]	10.264
Hazardous Waste Disposed Of (Kg) Total Life Cycle	60.274
Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]	39.416
Net Use Of Fresh Water (M3) Total Life Cycle	1.0435
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]	9.0976
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle	7283.1
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Distribution [A4]	1.9621
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]	1.6523
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]	180.01
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]	7365.1
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle	265.71
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	258.78
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]	6.2447
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]	166.84
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	7106.3
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle	265.54
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	258.78
Water Pollution (M3) Manufacturing [A1-a3]	1017
Water Pollution (M3) Installation [A5]	1.5003
Water Pollution (M3) End Of Life [C1-c4]	20.273

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.39329, 0.4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	10 kg CO2 eq., 10.264
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Serviceability	No
Field Service Division	IDIBS
Manufacturing Carbon Footprint	10.264
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2203018EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2007
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Industrial
Current Consumption	64 mA 3.3 V DC164 mA 24 V DC
Fixing Mode	by 4 screws 4.32-6.35 mm panelby 4 M6 screws plateby clips 35 mm symmetrical DIN rail
Number Of Slots	8 bus X + Ethernet
Product Availability	Stock - Normally stocked in distribution facility
Returnability	Yes
Sustainable Packaging	No
Pep Code	ENVPEP2203018EN
Pep Verification Date	2022-04-01
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	X80 Racks are used to install modules in a PLC station (power supply, processor, discrete, analog, and application-specific I/O) during 15 years with a 100% use rate.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Energy model used: France
Energy Model - Use [B6]	Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
Recyclability Potential In %	76
Carbon Footprint (Kg Co2 Eq Total Life Cycle)	343.72
Package Weight(Lbs)	1.078 kg
Warranty (In Months)	18
Air Pollution (M3) Manufacturing [A1-a3]	1365.5
Air Pollution (M3) Operational Energy Use [B6]	31597
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle	4744.7
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]	1.9522
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]	4639.1
Global Warming (Kg.Equivalent.Co2) Total Life Cycle	343.72
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]	332.92
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]	19.493
Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]	1.3646
Non-hazardous Waste Disposed Of (Kg) Total Life Cycle	64.233
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]	55.107
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]	173.09
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	7106.3
Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle	7548.9
Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]	1.9648
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]	1.654
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]	6.9247
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle	6.2447
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle	7276.9
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]	1.9621
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]	1.6523
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]	6.7536
Water Pollution (M3) Total Life Cycle	17668
Water Pollution (M3) Distribution [A4]	22.851
Water Pollution (M3) Operational Energy Use [B6]	16606
Customs Code	8536908585

Environment Attributes Main

Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Take Back	No
China Rohs Regulation	X
Carbon Footprint	343.72
Circularity Profile	ENVEOLI2203018EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2203018EN
Pcr Version	PCR-ed3-EN-2015 04 02

Product Compatibility	I/O module, BMX processor, specific application module, BMXCPS power supply, BME processor
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	0-60 °C
Environmental Disclosure	ENVPEP2203018EN
Ip Degree Of Protection	IP20
Packaging Without Single Use Plastic	Yes
Relative Humidity	5-95 % without condensation
Pep Verification Date	2022-04-01
Type Of Verification For The Pep	Independent internal review
