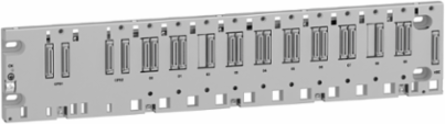

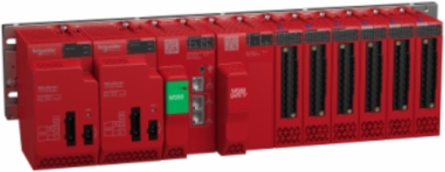

Schneider Electric BMEXBP1002 Modicon X80 Ethernet Backplane Rack, 10 Slots, IP20, 1.37 Kg
- MPN: BMEXBP1002
- PPN: SCH-BMEXBP1002
CAD
$1677.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of programmable automation controllers. This 10-slot dual Ethernet and X-bus backplane provides 10 slots with 8 Ethernet and X-bus connectors for mixed modules and 2 X-bus connectors for X-bus modules. This product is robust, high quality and based on the latest innovative technology. It is an Ethernet backplane rack with a current of 162mA at 24V DC and 76mA at 3.3V DC. It is furnished with 1 connector (XBE) expansion module for electrical connection. It offers 1770000 hours of MTBF. It is an IP20 rated product. It weighs 1.37kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This Ethernet backplane rack is compatible with specific application module, I/O module, BMXCPS4002, BMX processor and BME processor. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Fixing Mode
- by 4 M6 screws plate, by 4 screws 4.32-6.35 mm panel
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.5 kg CO2 eq., 0.4998060417
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 13 kg CO2 eq., 13.0438333333
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2203018EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2007
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Current Consumption
- 162 mA 24 V DC76 mA 3.3 V DC
- Mtbf Reliability
- 1184170 H
- Power Consumption In W
- 251 mW 3.3 V DC3.9 W 24 V DC
- Range Of Product
- Modicon X80
- Software Version
- EIME v5.9.3
- Total Lifecycle Carbon Footprint
- 214 kg CO2 eq.
- Database Version
- 2020-12
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- X80 Racks are used to install modules in a PLC station (power supply, processor, discrete, analog, and application-specific I/O) during 15 years with a 100% use rate.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: France
- Energy Model - Use [B6]
- Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
- Accessory / Separate Part Type
- rack
- Package Weight(Lbs)
- 1.384 kg
- Warranty (In Months)
- 18
- Water Pollution (M3) Manufacturing [A1-a3]
- 1292.4375
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Carbon Footprint Of The Distribution Phase [A4]0.176595, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0130451042, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]200 kg CO2 eq., 200.2827359091
Local Publishable Date2026-02-19
Stocking FlagN
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Electrical Connection1 connector (XBE) expansion module
Number Of Slots8 bus X + Ethernet2 bus X
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Sustainable PackagingNo
Pep CodeENVPEP2203018EN
Pep Verification Date2022-04-01
Psr Versionnan
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y15
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
Nbr. Of Units In Pkg.1
Take-backNo
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]8.5827
Customs Code8536908585
Environment Attributes Main
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 214.0160153883
- Circularity Profile
- ENVEOLI2203018EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2203018EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Product Compatibilityspecific application module, I/O module, BMXCPS4002, BMX processor, BME processor
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation0-60 °C
Environmental DisclosureENVPEP2203018EN
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Relative Humidity5-95 % without condensation
Pep Verification Date2022-04-01
Psr Versionnan
General Attributes
- Range Of Product
- Modicon X80
ETIM
- ETIM 8
- EC000810
ETIM 9EC000810
