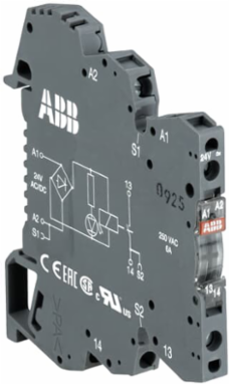

ABB 1SNA645534R2500 RBR121P-5VDC Boxed Interface Relay, 5 V DC, 1 c/o, 250 V / 6 A, IP20

RBR121P-5VDC Boxed Interface Relay, 5 V DC, 1 c/o, 250 V / 6 A, IP20
  • MPN: 1SNA645534R2500
  • PPN: ABB-1SNA645534R2500
  • UNSPSC: 39122331

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$49.69/ EA

Description

The RBR121P-5VDC is a boxed interface relay with spring terminals, which can be seemlessly snap-on mounted onto a DIN Rail. The relay is soldered into device housing, ensuring a high resistance against vibrationand this is further enhanced by the spring terminals which improve contact reliability by automatically adjusting the tension to the wire gauge.This relay operates with a 5 V DC rated control supply voltage and has a 1 c/o (SPDT) output with contacts rated at 250 V / 6 A. This 6mm wide boxed interface relay may be used for electrical isolation, amplification and signal matching and enables the switching of high currents on a small footprint. It has an integrated LED, which provides the visual indication of the energization of the relay coil and UL 94-V0 certified device housing, improving safety by providing high levels flame retardation. Jumper bars are available as accessories.

Specifications

Dimensions

Product Net Width
6 mm
Product Net Depth / Length
75 mm
Product Net Height67.5 mm
Product Net Weight0.02 kg

Technical

Function
Boxed interface relay R600
Rated Control Supply Voltage (Us)
5 V DC
Output Signal
5 ... 250VAC / 60mA ... 6A
Degree of Protection
IP20
Sub-FunctionRelay with built in LED
Output1 c/o (SPDT) contact
Terminal TypeSpring Terminals
StandardsCAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 60947-5-1UL 508

Classifications

Object Classification Code
K
eClass
V11.0 : 27371601
ETIM 9EC001437 - Switching relay

Environmental

RoHS Status
Following EU Directive 2011/65/EU

Ordering

Minimum Order Quantity
10 piece
Customs Tariff Number85364900
