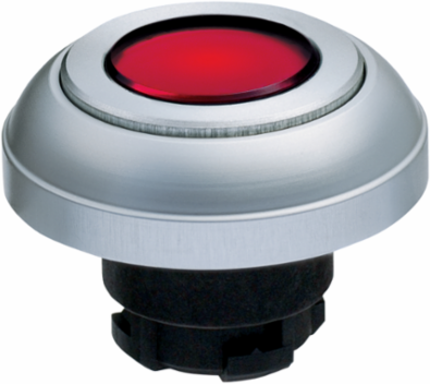

RDLRT Illuminated Pushbutton 28 mm Diameter, IP65, Red Color
RDLRT Illuminated Pushbutton 28 mm Diameter, IP65, Red Color
Schmersal

Schmersal 101188254 RDLRT Illuminated Pushbutton 28 mm Diameter, IP65, Red Color

  • MPN: 101188254
  • PPN: SCM-101188254

CAD

$82.38

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

RDLRT Illuminated Pushbutton 28 mm Diameter, IP65, Red Color

Documentation & Downloads

Specifications

Key Specifications

Height
11.3 mm

Electrical data

Switching frequency
1,200 /h

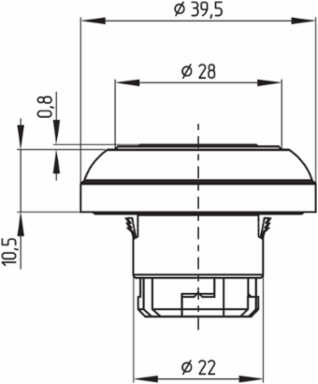

Mechanical data - Dimensions

Height
11.3 mm
Height of touch surface
0.8 mm
Diameter of the front ring
39.5 mm
Thickness, of the front panel, minimum
1 mm
Spacing
40 x 50 mm
Diameter total39.5 mm
Diameter of touch surface28 mm
Mounting diameter22.3 mm
Thickness of the front panel, maximum6 mm

General data - Features

Illuminable
Yes
Probing possible
Yes
Integral system diagnostics, general
No
Mounting flangeYes
Fully insulatedYes

General data

Standards
EN IEC 60947-5-1 | EN IEC 60947-1
Design
Round
Sealing type
Membrane | Lip gaskets | Form seals
Material of the front ring
Aluminium
Colour of the front ring
Silver
VersionsFlush-mounted illuminated pushbutton - Front plate mounting
Installation conditions (mechanical)arbitrarily
Material of the operatorsGlass
Colour of the operating elementRed
Gross weight39 g

Ambient conditions

Degree of protection
IP65
Restistance to shock
50 g
Ambient temperature-25 ... +75 °C

Mechanical data

Unlocking
without
Actuating stroke
4 mm
Mounting
Mounting flange ELM
Mechanical life, minimum1,000,000 Operations
Actuating force, approx.1.5 N
Tightening torque of the screw0.6 Nm
