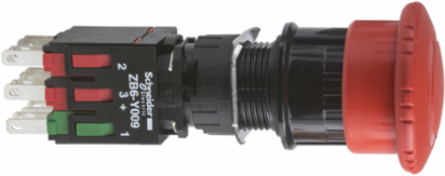

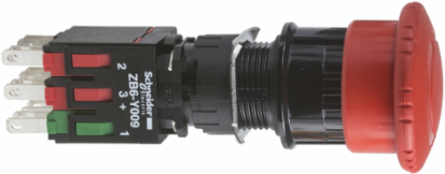

Schneider Electric XB6AS8345B Complete Emergency Stop Push Button, 16mm, IP65, Red 30mm Mushroom

  • MPN: XB6AS8345B
  • UPC: 785901146247
  • PPN: SCH-XB6AS8345B
  • UNSPSC: 39122216
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $85.43

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off) is easily installed into standard 16mm diameter cut-outs and connected with simple faston connectors It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 30mm mushroom shape It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments High performance International standards & certifications ( Marine certification, IP65)

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginFrance
    Depth77 mm
    Weight22.7 g

    Complementary Attributes

    Ie Rated Operational Current3 A 120 V, AC-15, B300 IEC 60947-5-11.5 A 240 V, AC-15, B300 IEC 60947-5-10.1 A 250 V, DC-13, R300 IEC 60947-5-10.22 A 125 V, DC-13, R300 IEC 60947-5-1
    Uimp Rated Impulse Withstand Voltage4 kV IEC 60947-1
    Ui Rated Insulation Voltage250 V 3)IEC 60947-1

    Important Information Attributes

    Electrical Durability1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    Certificate AgencyUL, CCC, CSA, GOST
    Carbon Footprint Of The Distribution Phase A40.0029684291, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A50.0079562446, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase B2 B3 B4 B6kg CO2 eq., 0
    Local Publishable Date2026-06-20
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2312039EN
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Bezel Materialplastic
    Contacts Materialsilver alloy (Ag/Ni)
    Contacts Usagestandard
    Electrical Reliabilityλ < 10exp(-8) 5 V, 1 mA with confidence level of 90 % IEC 60947-5-4
    Mechanical Durability100000 cycles
    Operating Force3.5 N NO changing electrical state4.5 N NC changing electrical state
    Operating Travel1 mm NC changing electrical state)2 mm NO changing electrical state)3.5 mm total travel)
    Positive Openingwith IEC 60947-5-1 appendix K
    Product Or Component Typecomplete emergency stop push-button
    Range Of ProductHarmony XB6
    ReturnabilityYes
    Shape Of Signaling Unit Headround
    Software Versionv5.9.4
    Total Lifecycle Carbon Footprint0.2 kg CO2 eq.
    Type Of Operatortrigger action and mechanical latching
    Connections TerminalsFaston connectors 2.8 x 0.5 mm
    Data Sourceextrapolated product
    Width Nominal30 mm
    Customs Code8536509031
    Warranty In Months18
    Reference Lifetime In Y10
    Vibration Resistance+/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Terminals Description Iso N°1(13-14)NO, (21-22)NC, (13-14)NO, (21-22)NC
    Carbon Footprint Of The End Of Life Phase C1 To C40 kg CO2 eq., 0.0402668483
    Carbon Footprint Of The Manufacturing Phase A1 To A30.2 kg CO2 eq., 0.1846922601
    Local Data StatusPublishable
    Return IndicatorY
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticNo
    Product Kit IdentifierN
    Contact Operationslow-break
    Contacts Type And Composition1 NO + 1 NC
    Device Short NameXB6
    Electrical Shock Protection Classclass II conforming to IEC 61140
    Mounting Diameter16 mm
    Operating Positionany position
    Operator Profilered mushroom Ø 30 mm, unmarked
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Protective TreatmentTC
    Resetturn to release
    Sale Per Indivisible Quantity1
    Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Sustainable PackagingNo
    Type Of Keylockkey 200
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2022-01
    Height Nominal30 mm
    Nbr. Of Units In Pkg.1
    Short Circuit Protection6 A cartridge fuse gG
    Functional Unit DescriptionThis Harmony XB6 red, complete emergency stop push button is part of the range diameter 16mm plastic, Harmony XB6 modular. It has a circular head shape, with a turn to release mushroom, diameter 30mm, with trigger action and mechanical latching. It features 1 NO + 2 NC slow break contacts and faston connection type. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels. It has energy consumption of 0.0675 W at use rate of 71% during 10 years. Product meets the international standards such as EN/IEC 60947-1 and EN/IEC 60204 -1.

    Environment Attributes Main

    Ambient Air Temperature For Operation-25-70 °C, -25-70 °C
    Nema Degree Of ProtectionNEMA 4X CSA C22.2 No 94NEMA 4 CSA C22.2 No 94, NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Circularity ProfileENVEOLI2312039EN
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardNo
    Reach Free Of SvhcYes
    Pep CodeENVPEP2312039EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Carbon Footprint0.235883782
    Environmental DisclosureENVPEP2312039EN
    Ip Degree Of ProtectionIP65 IEC 60529
    Packaging Without Single Use PlasticNo
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2023-12-07
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Typecomplete emergency stop push-button
    Range Of ProductHarmony XB6

    ETIM

    ETIM 8EC002034
    ETIM 10EC002034
    ETIM 9EC002034

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months
