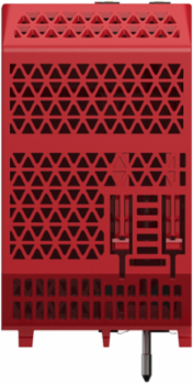

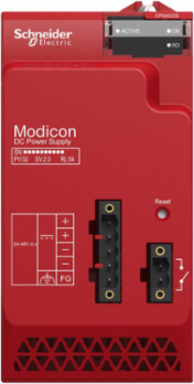

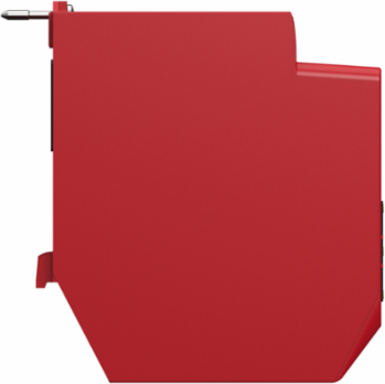

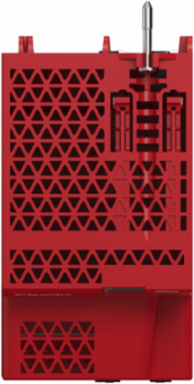

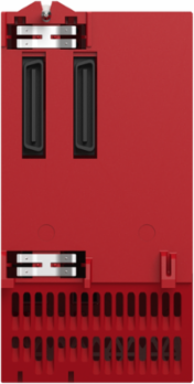

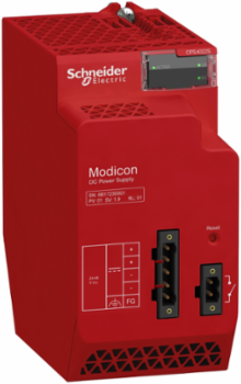

Schneider Electric BMXCPS4022S Redundant Power Supply Module, 24-48V DC, 1.67A@24V, 5A@3.3V
- MPN: BMXCPS4022S
- PPN: SCH-BMXCPS4022S
CAD
$2516.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Redundant Power Supply Module, 24-48V DC, 1.67A@24V, 5A@3.3V
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Philippines, Sweden, United States
Complementary Attributes
- Maximum Cable Distance Between Devices
- 10 m, 15 m
Maximum Power Dissipation In W8.5 W
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Current At Secondary Voltage
- 1.67 A 24 V DC I/O module logic power supply, 5 A 3.3 V DC I/O module power supply and processor
- Environmental Characteristic
- hazardous location class I division 2, gas resistant class Gx ISA S71.04gas resistant class 3C4 IEC 60721-3-3dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3
- Inrush Current
- 60 A 24 V, 60 A 48 V
- Protection Type
- internal fuse not accessible primary circuitoverload protection secondary circuit, overvoltage protection secondary circuit, short-circuit protection secondary circuit
- Certificate Agency
- CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22IECEx zone 2/22, TÜV
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 2 kg CO2 eq., 1.5179952388543219
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 27 kg CO2 eq., 26.912056507233444
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2410045EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1940
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Control Type
- RESET push-button cold restart
- Immunity To Microbreaks
- 1 ms
- Mtbf Reliability
- 721000 H
- Primary Voltage Limit
- 18...62.4 V
- Product Or Component Type
- power supply module
- Range Of Product
- Modicon X80
- Secondary Power
- 18 W 3.3 V DC -25-60 °C I/O module logic power supply40 W 24 V DC -25-60 °C I/O module power supply and processor if 3.3 V not loaded
- Software Version
- v6.1
- Sustainable Packaging
- Yes
- Vibration Resistance
- 3 gn
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To provide power to a Modicon X80 controller during 10 years and at 90% use rate, in accordance with relevant safety and performance standards.To provide power to a Modicon X80 platform during 10 years with a 90% use rate, in accordance with relevant safety and performance standards.
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 670.14
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; United States, US
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; United States, US
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8504409510
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Dielectric Strength1500 V primary/ground, 1500 V primary/secondary
Function Availableredundancy information, redundancy test, remaining lifetime, temperature sensing, uptime duration
Insulation Resistance>= 100 MOhm primary/ground, >= 100 MOhm primary/ground, >= 100 MOhm primary/secondary, >= 100 MOhm primary/secondary>= 100 MOhm primary/ground, >= 100 MOhm primary/ground, >= 100 MOhm primary/secondary
Status Led1 LED (Green) presence of voltages (OK), 1 LED (Green) redundancy OK, 1 LED (Green) power supply status
Carbon Footprint Of The Distribution Phase [A4]0.9973471965879026, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.006237417681114307, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]467 kg CO2 eq., 467.2337794379028
Local Publishable Date2026-04-04
Stocking FlagN
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Electrical Connection1 connector 2 alarm relay1 connector 5 line supply, protective earth
It On Activation0.3 A.s 24 V0.4 A.s 48 V
Primary Voltage24...48 V
Product AvailabilityStock - Normally stocked in distribution facility
Protective Treatmentconformal coating
ReturnabilityYes
Shock Resistance15 gn
Supply Circuit TypeDC
Total Lifecycle Carbon Footprint497 kg CO2 eq.
Pep CodeENVPEP2410045EN
Pep Verification Date2024-12-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Indonesia, ID
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; United States, US
I²T On Activation1 A².s 24 V3 A².s 48 V
Package Weight(Lbs)679.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-60 °C, -25-60 °C
- Directives
- 2014/30/EU - electromagnetic compatibility, 2006/42/EC - machinery, 2014/34/EU - ATEX directive
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2410045EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)2000...5000 m with derating factor
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2410045EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint496.6674157982596
Environmental DisclosureENVPEP2410045EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Product Compatibilityall backplane
Relative Humidity5-95 % 55-55 °C without condensation
Pep Verification Date2024-12-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- power supply module
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC000599
ETIM 9EC000599
Input Attributes
- Input Current
- 1.9 A 24 V1 A 48 V
