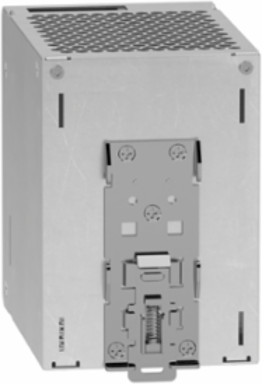

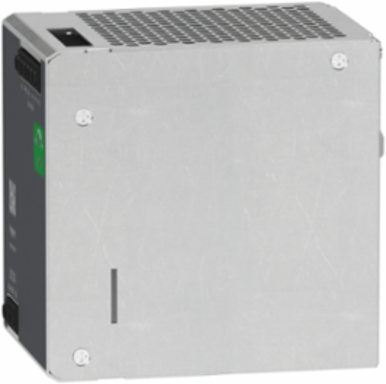

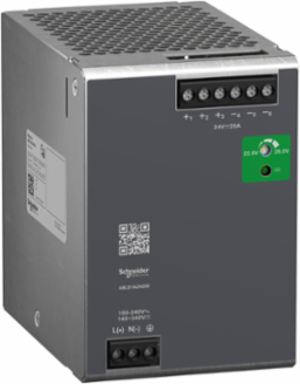

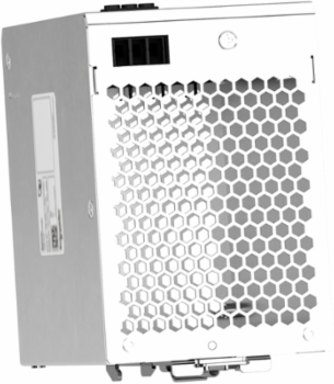

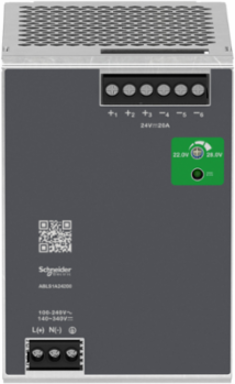

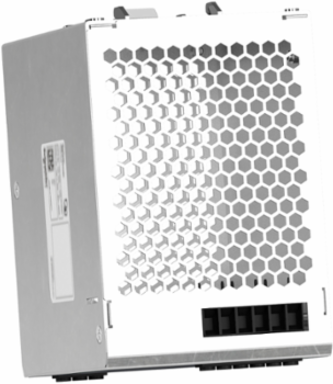

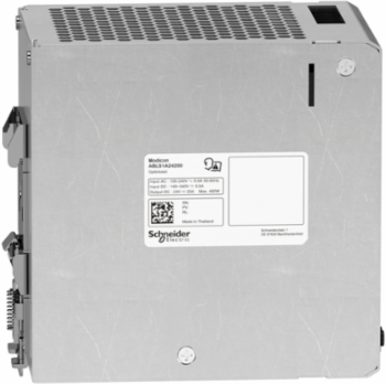

Schneider Electric ABLS1A24200 Regulated Power Supply 24V 20A, 480W, Rail Mounting, IP20
- MPN: ABLS1A24200
- PPN: SCH-ABLS1A24200
CAD
$624.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Regulated Power Supply 24V 20A, 480W, Rail Mounting, IP20
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, India, Singapore, United States
Depth128.5 mm
Complementary Attributes
- Maximum Leakage Current
- 1 mA 240 V AC
Rated Power In W480 W
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Current Consumption
- < 5.4 A 115 V AC, < 5.4 A 115 V AC, < 5.4 A 115 V AC, < 2.7 A 230 V AC, < 2.7 A 230 V AC, < 2.7 A 230 V AC, < 5 A 140 V DC, < 5 A 140 V DC, < 5 A 140 V DC< 5.4 A 115 V AC, < 5.4 A 115 V AC, < 5.4 A 115 V AC, < 2.7 A 230 V AC, < 2.7 A 230 V AC, < 5 A 140 V DC, < 5 A 140 V DC, < 5 A 140 V DC
- Efficiency
- 85 % 115 V AC, 88 % 230 V AC
- Electromagnetic Compatibility
- immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2, immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2, immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3, immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3, immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3, immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4, surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5, surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5, immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6, immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8, immunity to voltage dips conforming to IEC 61000-4-11, disturbing field emission conforming to EN 55016-2-3, limits for harmonic current emissions conforming to IEC 61000-3-2, conforming to EN 55016-1-2, conforming to EN 55016-2-1
- Holding Time
- > 20 ms 115 V AC, > 20 ms 115 V AC, > 20 ms 115 V AC, > 20 ms 230 V AC, > 20 ms 230 V AC, > 20 ms 230 V AC> 20 ms 115 V AC, > 20 ms 115 V AC, > 20 ms 115 V AC, > 20 ms 230 V AC
- Line And Load Regulation
- < 0.5 % network 0 to 100 % load at 25 °C, < 0.5 % network 0 to 100 % load at 25 °C, < 0.5 % network 0 to 100 % load at 25 °C, < 1 % network full voltage range in line at 25 °C, < 1 % network full voltage range in line at 25 °C, < 1 % network full voltage range in line at 25 °C< 0.5 % network 0 to 100 % load at 25 °C, < 0.5 % network 0 to 100 % load at 25 °C, < 0.5 % network 0 to 100 % load at 25 °C, < 1 % network full voltage range in line at 25 °C, < 1 % network full voltage range in line at 25 °C
- Power Factor
- 0.95 at 115 V AC, 0.95 at 230 V AC
- Response Time
- < 1.5 s, < 1.5 s
- Vibration Resistance
- 3 mm (f= 2-9 Hz) conforming to IEC 60068-2-6, 10 m/s² (f= 9-200 Hz) conforming to IEC 60068-2-6
- Connections - Terminals
- screw connection 0.75...4 mm², AWG 18...AWG 12) with wire end ferrule inputscrew connection 0.75...4 mm², AWG 20...AWG 12) without wire end ferrule output, screw connection 0.75...4 mm², AWG 20...AWG 14) with wire end ferrule output, screw connection 0.75...4 mm², AWG 18...AWG 12) without wire end ferrule input
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 2.3980073564307327, 2 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 12 kg CO2 eq., 11.899862572189841
- Other Technical Guide
- https://download.schneider-electric.com/files?p_Doc_Ref=ESXP1G003EN&p_File_name=ESXP1G003EN_web.pdf, ESXP1G003EN
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2007005EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2010
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Dielectric Strength
- 3000 V AC with input to output
- Enclosure Material
- Aluminum
- Network Frequency Limits
- 50-60 Hz
- Power Dissipation In W
- 60 W
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Modicon Power Supply
- Service Life
- 10 year(s)
- Software Version
- v6.2.5-6
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 45311
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To supply control circuits in industrial atmosphere up to 480W at 100% for 10 years.To supply control circuits in industrial atmosphere up to 480W at 100% for 10 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 5256
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 123.6 mm
- Meantime Between Failure [Mtbf]
- 700000 h at 25 °C, full load conforming to SR 332
- Package Weight(Lbs)
- 1.423 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Earthing SystemTN, TT, IT
Efficiency At Full Load85...264 V AC without temperature derating, 120...375 V DC without temperature derating
Electromagnetic Emissionconducted emissions IEC 61000-6-3, radiated emissions IEC 61000-6-4
Inrush Current45.0 A 115 V, 90.0 A 230 V
Mounting Supporttop hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, double-profile DIN rail
Residual Ripple< 120 mV, < 120 mV
SupplySELV IEC 60950-1, SELV IEC 60204-1, SELV IEC 60364-4-41
Certificate AgencyCE, cUL Listed, cUL Recognized, RCM, CB Scheme, EAC, KC
Carbon Footprint Of The Distribution Phase [A4]0.512225706575929, 0.5 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.020676296290629857
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]2 983 kg CO2 eq., 2982.658682645455
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Field Service DivisionIDIBS
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Electrical Shock Protection Classclass I
Load Capacitance8000 µF
Overvoltage CategoryII
Power Supply Typeregulated switch mode
Product Or Component Typepower supply
ReturnabilityYes
Shock Resistance150 m/s² 11 ms
Status Led1 LED (Green) output voltage
Total Lifecycle Carbon Footprint2 997 kg CO2 eq.
Pep CodeENVPEP2007005EN
Pep Verification Date2025-09-18
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; China, CN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential, In %12
Width Nominal85.5 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -20-50 °C without derating mounting position A 230 V AC < 6561.68 ft (2000 m), -20-50 °C without derating mounting position A 230 V AC < 6561.68 ft (2000 m), -20-50 °C without derating mounting position A 230 V AC < 6561.68 ft (2000 m), -20-50 °C without derating mounting position A 230 V AC < 6561.68 ft (2000 m), -20-50 °C without derating mounting position A 230 V AC < 6561.68 ft (2000 m)-20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -20-50 °C without derating mounting position A 230 V AC < 6561.68 ft (2000 m), 40-70 °C with current derating of 1.67 % per °C mounting position A 115 V AC < 6561.68 ft (2000 m), 50-70 °C with current derating of 2.5 % per °C mounting position A 230 V AC < 6561.68 ft (2000 m)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2007005EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- < 5000 m< 5000 m
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2007005EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint2997.489454576942
Environmental DisclosureENVPEP2007005EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-09-18
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- power supply
Range Of ProductModicon Power Supply
ETIM
- ETIM 8
- EC002540
ETIM 9EC002540
Output Attributes
- Output Coupling
- parallel, serial
- Output Voltage
- 24 V DC
- Power Supply Output Current
- 20 A
Output Protection Typeagainst overload and short-circuits, protection technology: automatic reset, against over temperature, protection technology: manual reset, against overvoltage, protection technology: manual reset
Output Voltage Limits22...28 V
Input Attributes
- Efficiency
- 85 % 115 V AC, 88 % 230 V AC
- Input Protection Type
- integrated fuse (not interchangeable) 10 A, external protection (recommended) 20 A Curve C, external protection (recommended) 16 A Curve B, external protection (recommended) 13 A Curve C
Efficiency At Full Load85...264 V AC without temperature derating, 120...375 V DC without temperature derating
Input Voltage100...240 V AC single phase, 100...240 V AC phase to phase, 140...340 V DC
